MLA System USER GUIDE
MLA System User Guide V2.1 265
be warned that any ganging already implemented will be removed which is why it is sensible to create zones prior to any other
processing. Processing zones will be covered in later chapters.
Synchronize
When connecting or reconnecting to any system the cabinets will be synchronised, these is also the facility to re-synchronise at
any stage using the right-click menu.
Delete
Any array or Merlin can also be deleted from the right-click menu. This can also be achieved by selecting the item or items and
pressing the ‘Delete’ Key.
MLA/MLD & Compact Arrays
MLA/MLD and MLA Compact arrays are almost identical when controlled and monitored via Vu-Net with the only significant
difference being that MLA Compact has five cells to MLA and MLD’s six. This chapter will predominantly refer to arrays comprising
MLA with MLD where the same functionality is available for MLA Compact. All differences between the two will be explained

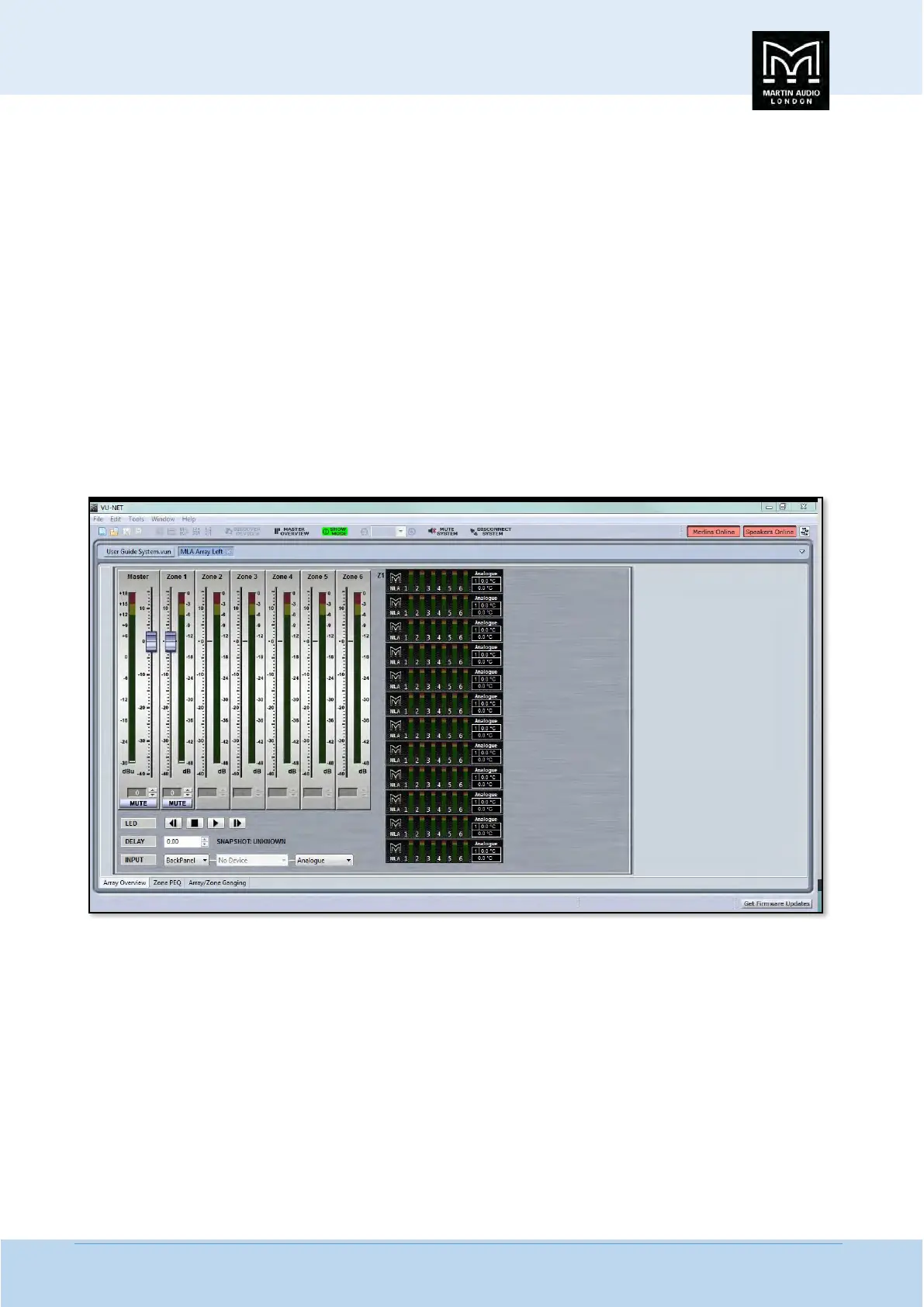

Double clicking on an MLA/MLD or Compact array or right clicking and selecting ‘Open’ will open a new window as an additional
tab as shown;-
MLA compact arrays will appear almost identically, just under the MLA logo the name is “MLAC" and of course there are only
five cells visible in the array thumbnail
