Accessories
Cables

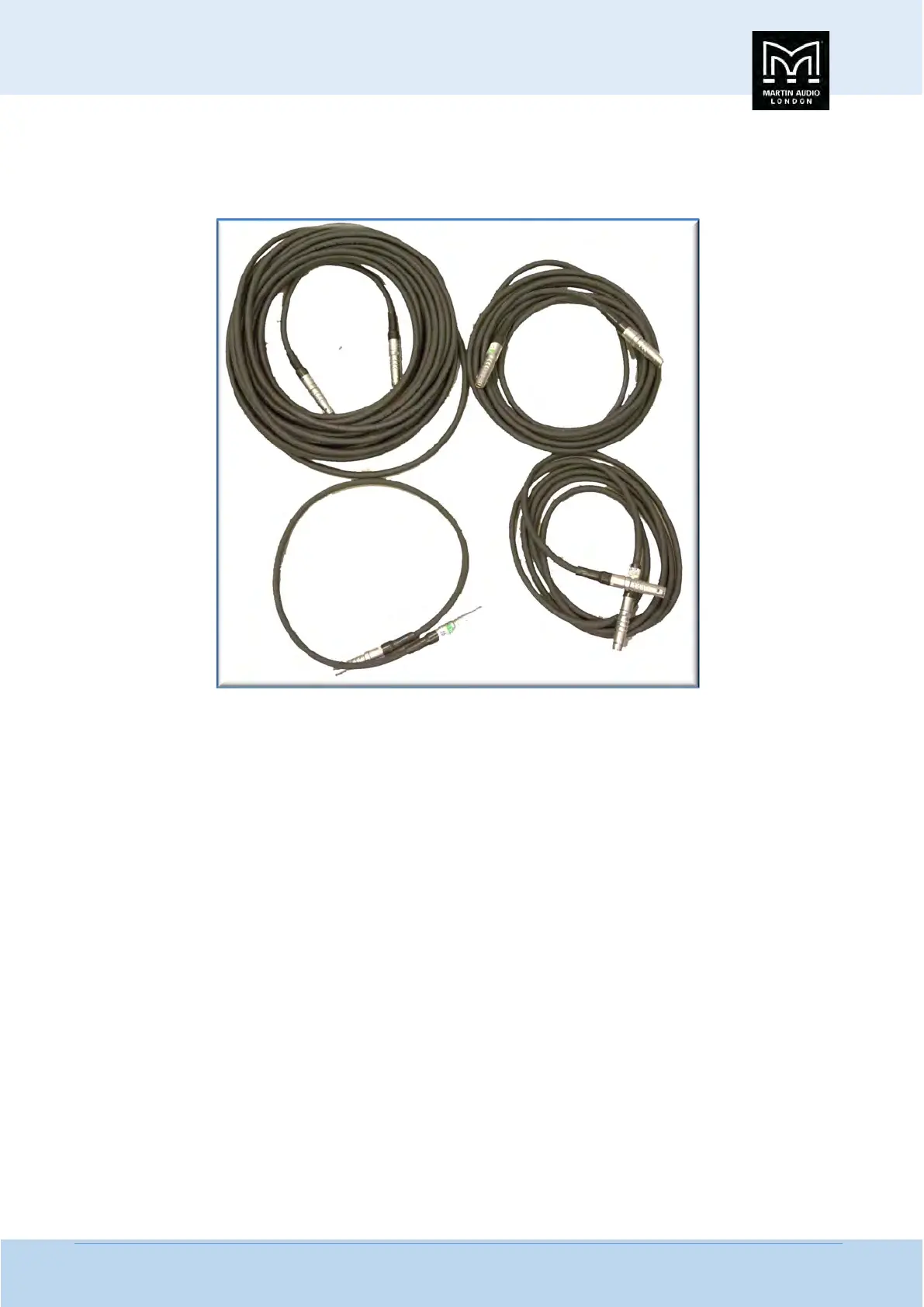

A full range of U-Net cables in various lengths are available for connections within an MLA series system; -
All cables use Belden 1305A tour grade CAT5E cable and feature the 8-pin ODU connector which is fitted with a unique over-
moulded strain relief making them incredibly robust. The part numbers are as follows; -
800mm PWA00038 Used to link between MLA or MLA Cabinets in an array
3m PWA00039 User to link MLX, DSX or MSX Subwoofers
5m PWA00051 General purpose cable, often used to link from a U-Hub to the first subwoofer where the racks are
in close proximity to the subs
15m PWA00063 General purpose cable, often used to link from a U-Hub to the first subwoofer in an array.
35m PWA00040 Most commonly used as part of an array loom to go from a rack up to a flown array and back and as
cross-stage Ethernet links
50m PWA00077 Extra-long Array looms.
75m PWA00052 Supplied on a cable drum, used for Ethernet connection to Front of house or extra-long cross stage
Ethernet links on large festival stages.
125m PWA00041 Supplied on a cable drum. 125m is the maximum cable length between nodes on a U-Net network
so can be used for the ultimate array loom in situations where the cable pick has to be virtually invisible and therefore is likely
to be particularly long.
