Mk 2 Master

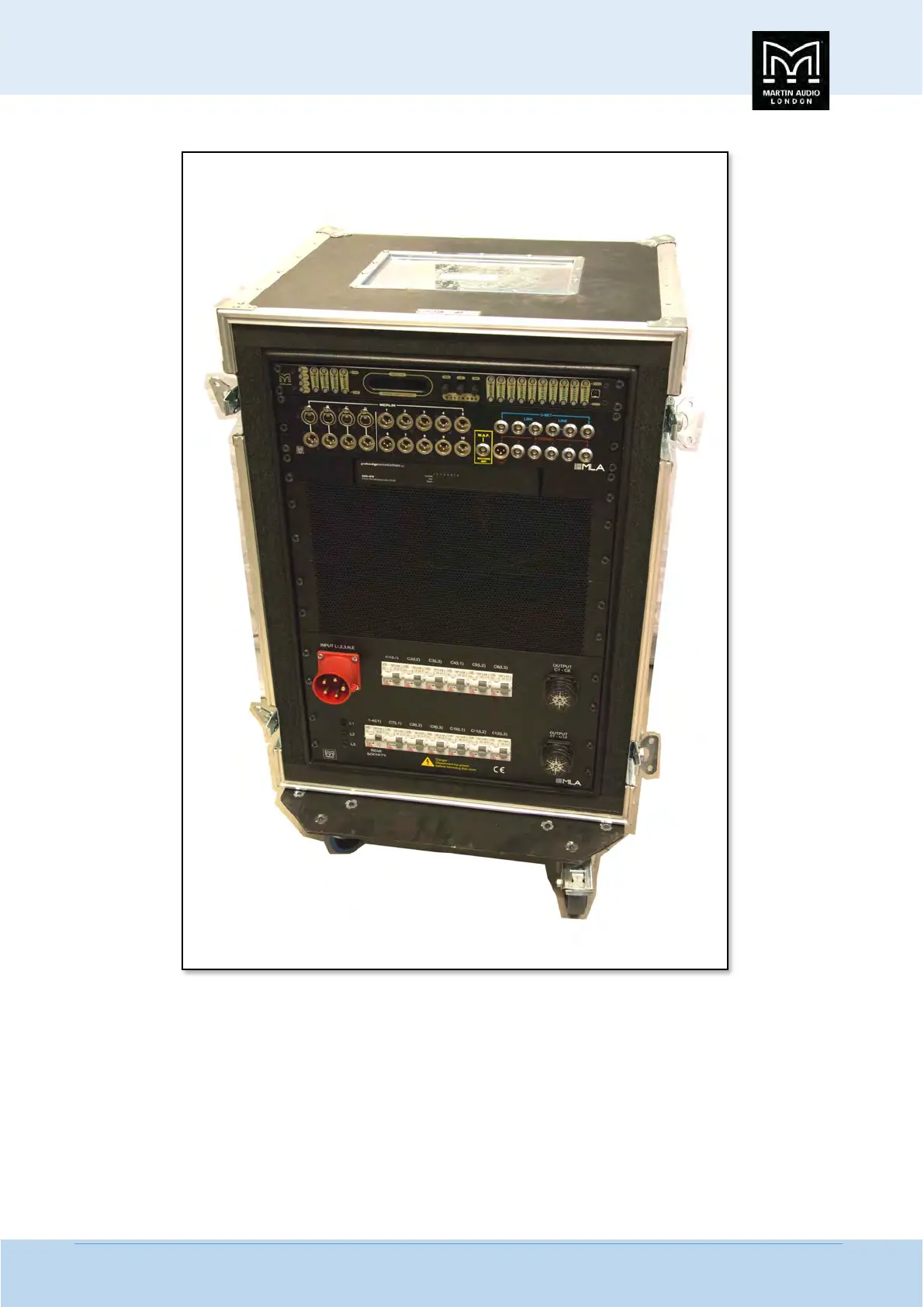

The Mk2 Master rack is a substantial step up from the first incarnation of the system. The first and most obvious improvement
is the mechanical deployment. The patch panel is now a slide-out tray secured by the top pair of rack bolts. This slides out to
access all network and wi-fi components which are secured to the tray which also features a dedicated 4-way mains board so
power to all network products is via a single inlet. The patch panel wiring loom has been modified to allow the tray to easily slide
in and out with all connections now fed through a bulk umbilical down one side which is dressed with expandable braided
sleeving for additional protection.
