MLA System USER GUIDE
MLA System User Guide V2.1 193
MLA Mini
MLA Mini has several deployment option for both flown and ground stacked systems. This changes the options and information
in the rigging panel
Flown system

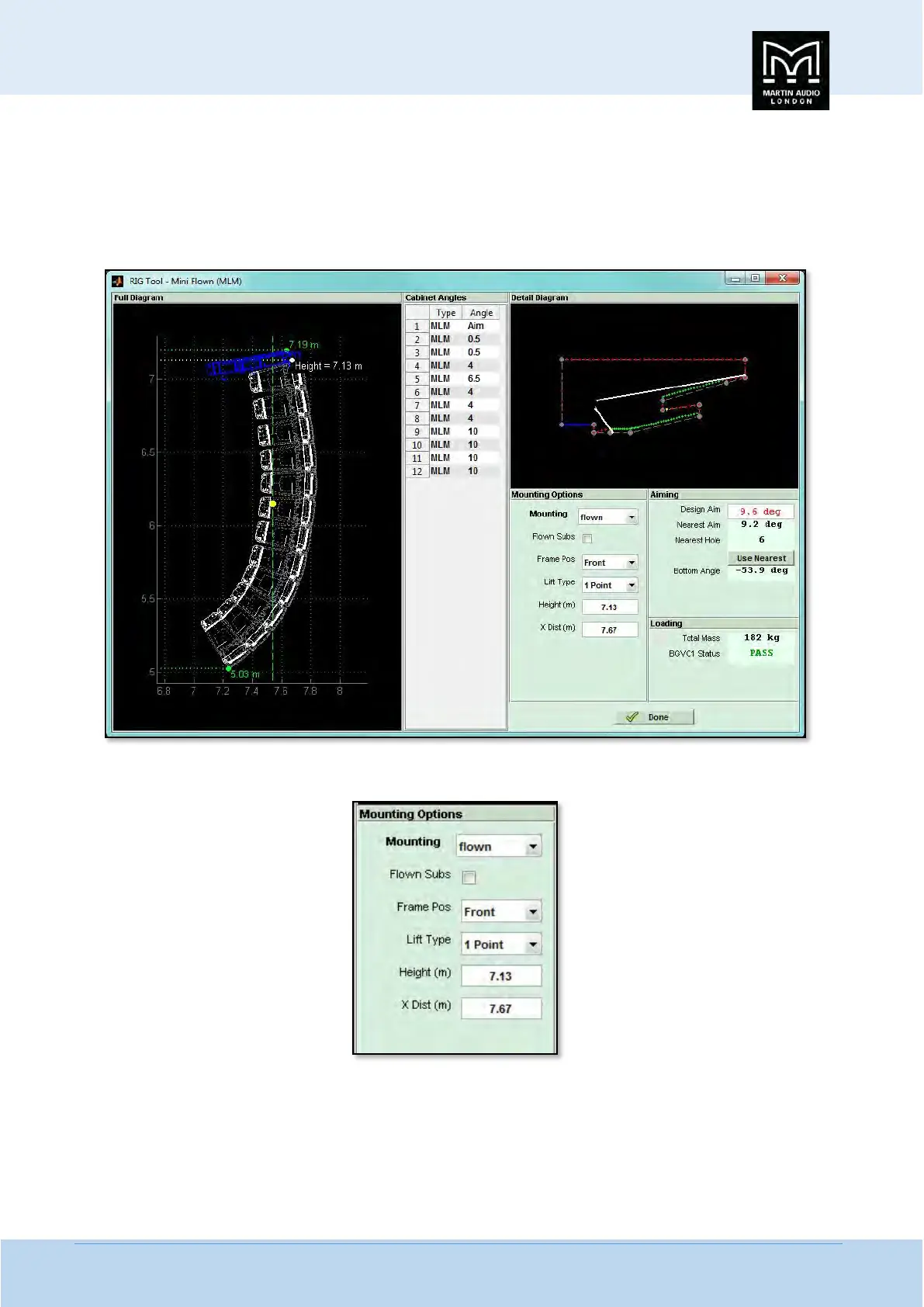

The Window for a flown MLA mini system appears like this;-
If we look first at the Mounting panel we have a number of options;-
First we have the 'Mounting' drop-down which gives us the option of flown, stacked or pole mount. Availability of these modes
is dependent on the number of boxes. Flown can be the full complement of 16, ground stacked up to 8 and pole mount up to 4.
As the array in the example has 12 enclosures we cannot select stacked or pole mount, if we try we will see the following
windows;-
