MLA System USER GUIDE
MLA System User Guide V2.1 194
Next we have the option to fly the MSX subs with the arrays if this wasn't selected when the array was initially added to the
project. This again has the limitation that it is only available for up to 12 enclosures, if the array is more than 12 cabinets the
flown subs option will not appear.

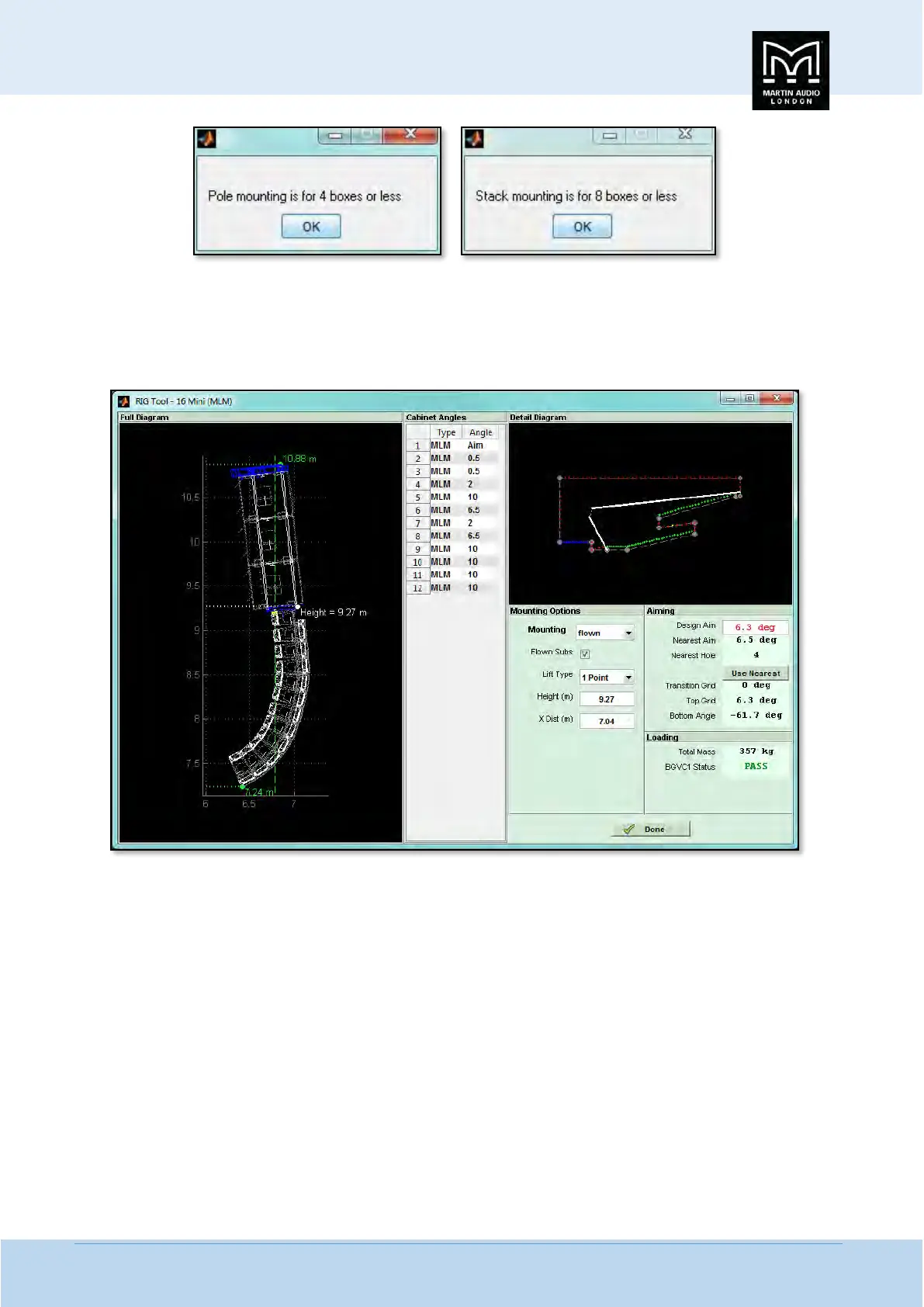

Here is the system above with flown subs;-
As with MLA and MLA Compact systems you can select 1 or 2 point hangs, the difference is that even with the maximum flown
MLA Mini, either 16 alone or 12 with 3 MSX, they will still be within BGVC1 limits from a single point. 2 point does of course give
you the flexibility of trimming the array angle by fine adjustment of one or other hoists.
As with MLA and MLA Compact the Aiming panel shows the array design angle and what is achievable with the nearest hole on
the flying grid;-
