MLA System USER GUIDE
MLA System User Guide V2.1 179

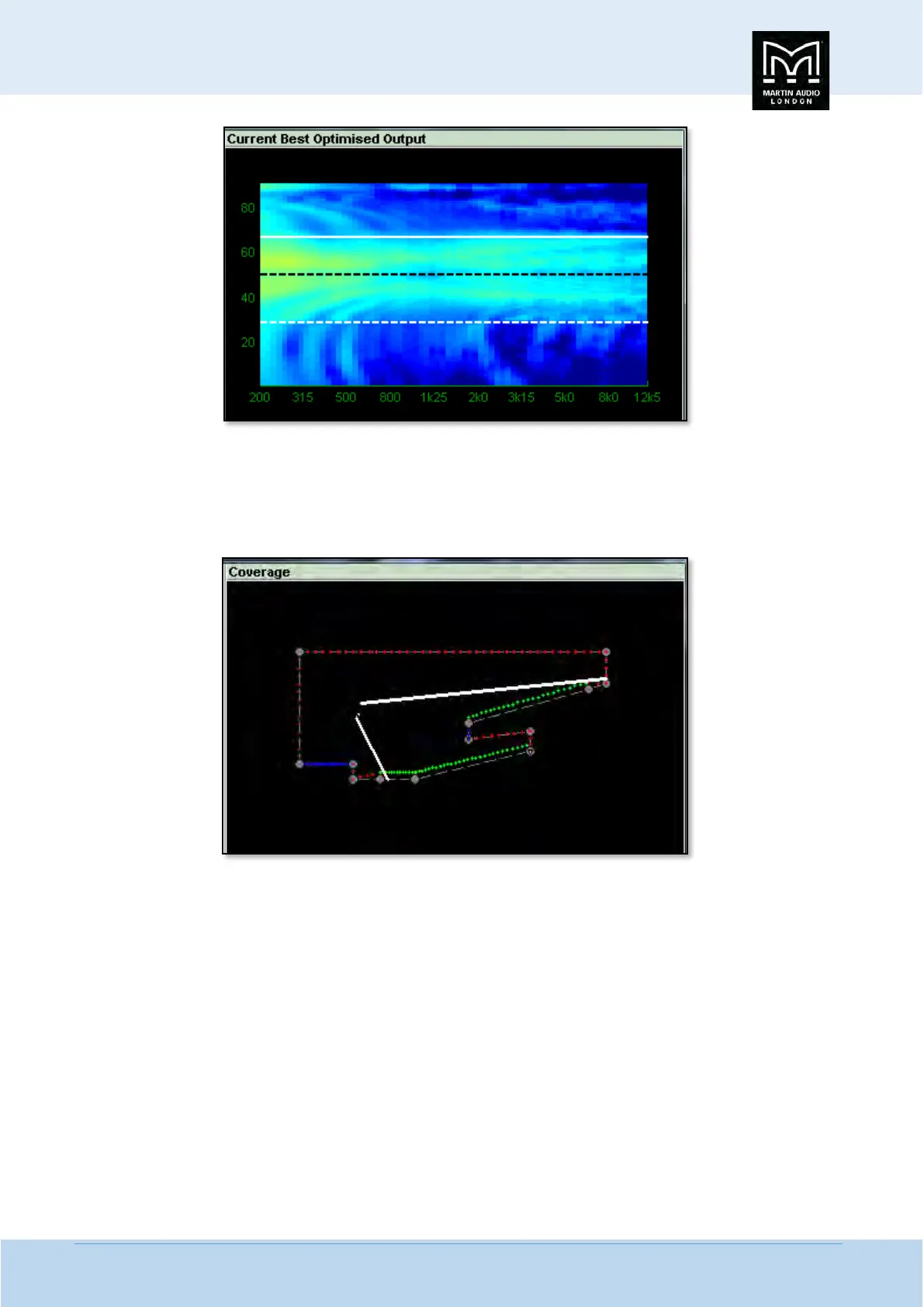

This gives you an instant comparison to the Current Acoustic Output; essentially a "before" and "after" to see how manually
articulating the array has improved the coverage.
One completed the window reverts to the coverage diagram showing the articulated array with the white lines from the centre
of the upper and lower cabinets again showing where the acoustic centres are pointing;-
Calculation
The Calculation section shows the physical orientation of the overall array. From here the number of boxes is defined and can
be changed if for any reason the initial array size was incorrect. You have the option to change the number of cabinets. You can
however only change the number to a quantity that is appropriate to the deployment method selected so a maximum of 6 for
ground stacked MLA or MLA Compact, 8 for ground stacked MLA Mini 12 for MLA Mini flown with MSX.
