MLA System USER GUIDE
MLA System User Guide V2.1 396

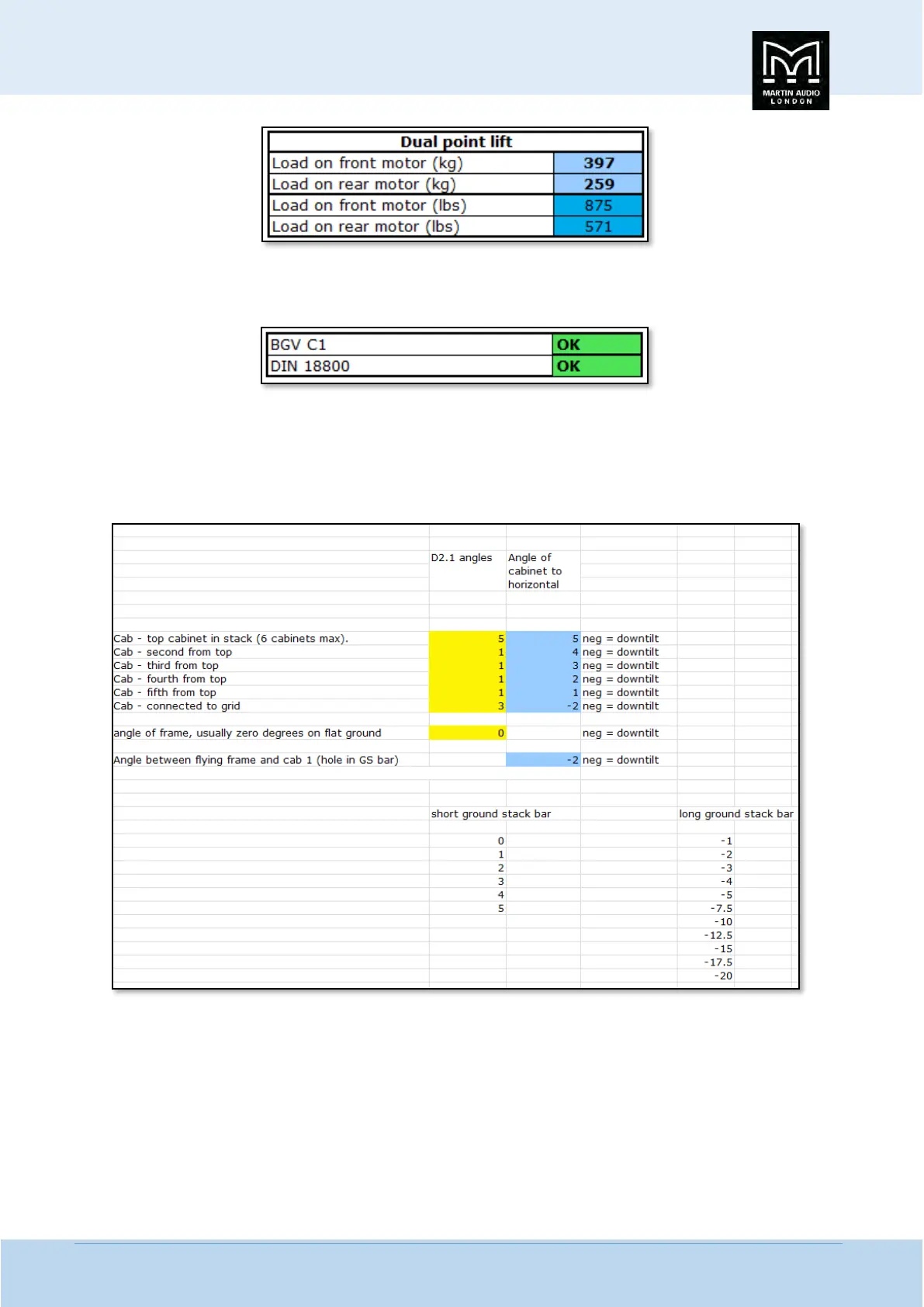

The safety of the array is shown with the final table. If everything is within BGV C1 and DIN 18800 limits both cells will show
“OK"with a green highlight;-
Ground Stacking
As with MLA there is no capability to directly create a ground stack array within Display 2.1 so any ground stack system has to be
designed as if flow and the angles entered into the spreadsheet as usual. Once completed select the Ground Stack Tab which
appears as shown;-
Note that the angles need to be manually entered on the Ground Stack tab; they are not automatically updated from the Input
page. The column highlighted in yellow is where the angles arte entered and includes an input for the flying grid. This will usually
be zero but if there is no other option other than to place it on an angled surface (avoid this if at all possible and if there is no
alternative make sure that the array is secured with ratchet straps or similar), you have the option to enter the angle of the grid.
The column in blue shows the angle of each cabinet with respect to the horizontal;-
To Next Page
