MLA System USER GUIDE
MLA System User Guide V2.1 99
U-Hub Network Connections
U-Hub features a standard RJ45 Ethernet port on the rear panel using a Neutrik Ethercon connector. This is wired using the
standard Ethernet wiring protocol so any off the shelf CAT5E or better network cable can be used to connect the U-Hub to your
Ethernet network.

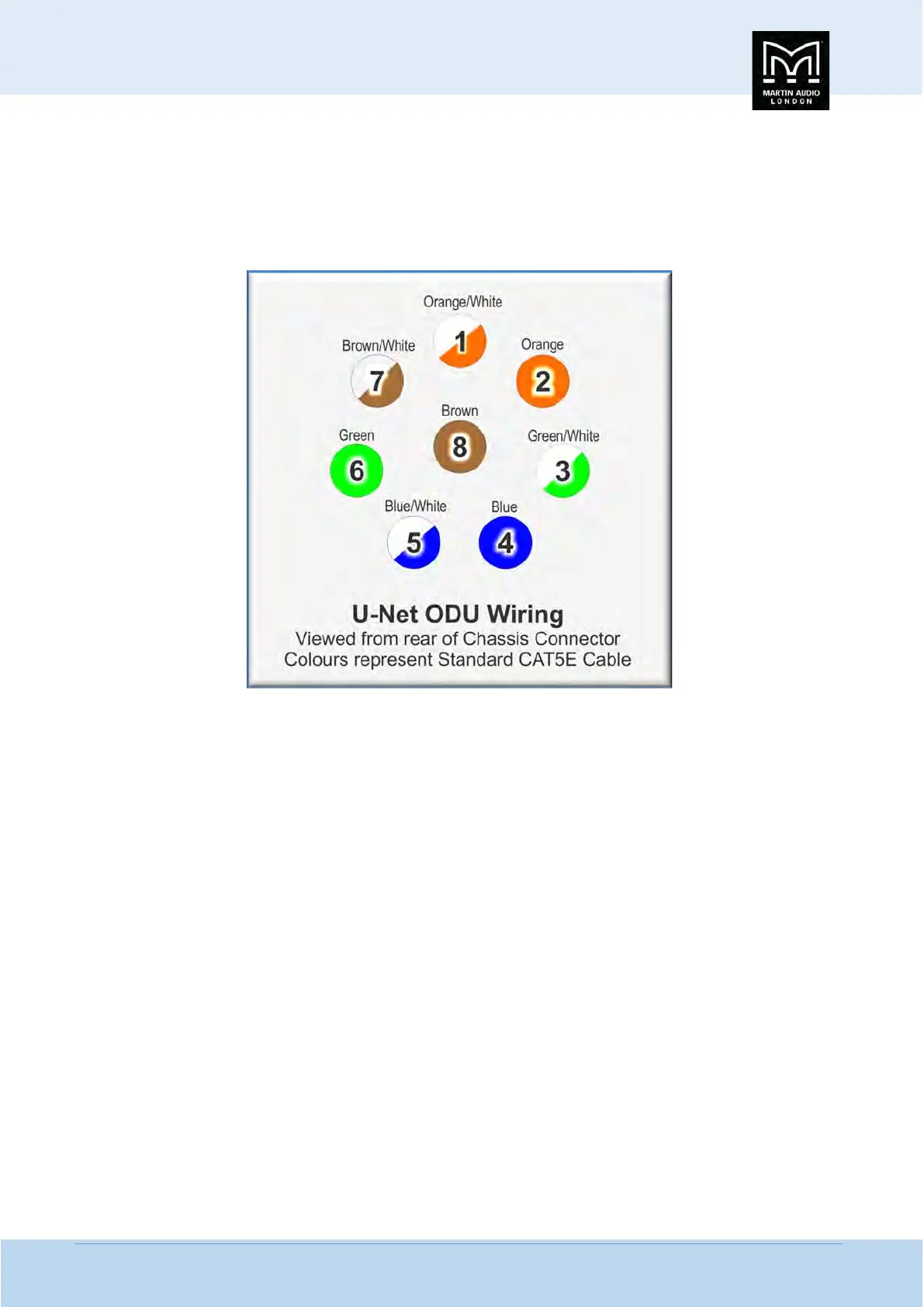

There are two front panel mounted U-Net ports for connection to the U-Net enabled devices in your system. These use ODU
connectors to the LEMO high speed data series pattern. Wiring configuration is as follows; -
The two pairs of linked ODU connectors are wired as shown in the block diagram. Pins 1, 2, 3 & 6 are linked together, pins 4 and
5 on the link out connectors have the audio signal from the corresponding audio input.
The same cable wiring configuration should be used for all network connections.
