Amplifier Module

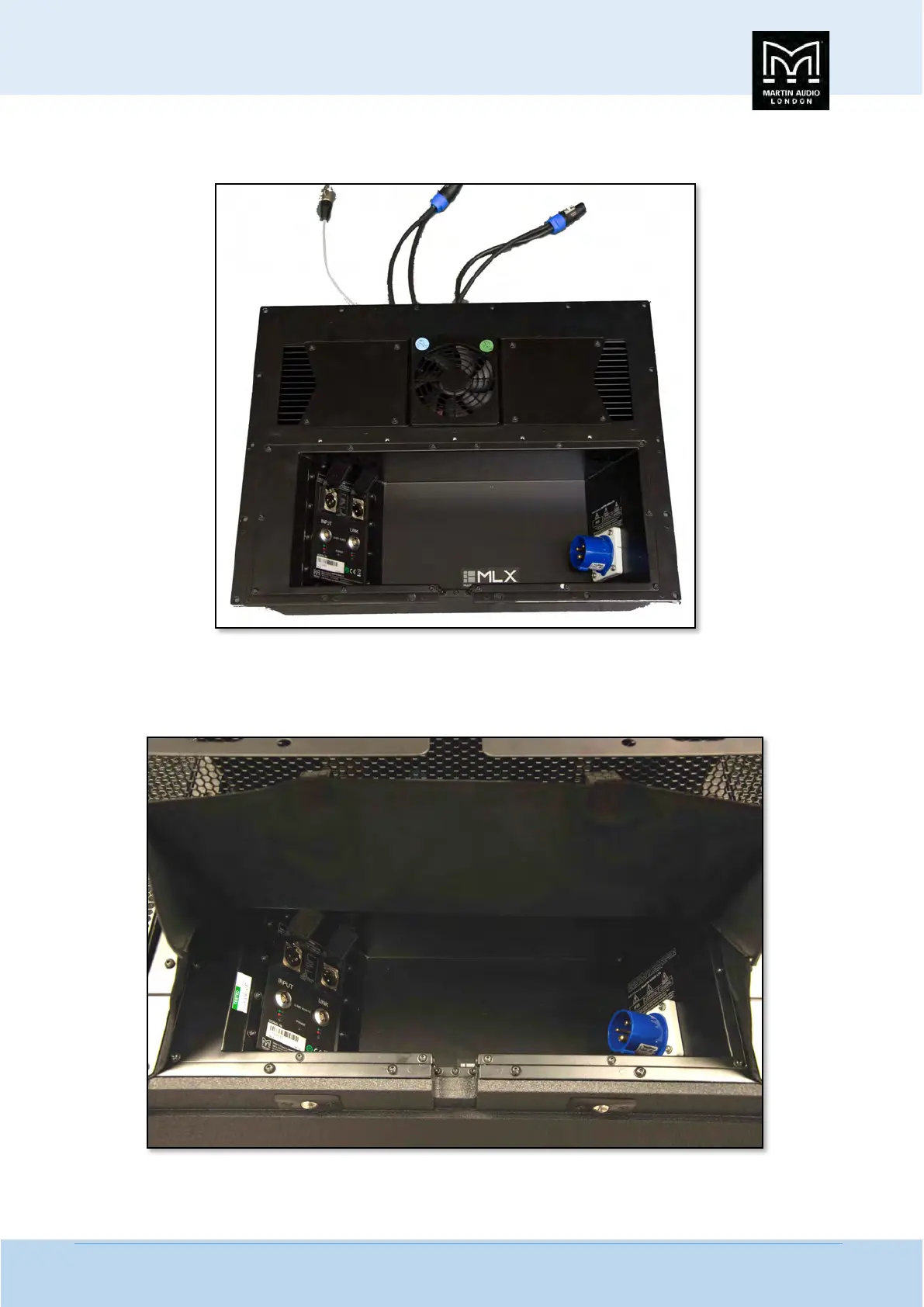

The MLX features a completely self-contained amplifier module housing the iPal amp module and U-Net interface.
The module is held in place behind the ventilation panel and connector lid, removal is a simple case of unscrewing the fixing
screws and disconnecting the two Neutrik NL4’s which connect the drivers and LED’s to the module, the Neutrik p-pin XLR which
connects the iPal pressure sensor and the Cat 5 cable that links to the iPal data port. Field replacement therefore is very quick
and easy in the unlikely event of a module failure.
