MLA System USER GUIDE
MLA System User Guide V2.1 101

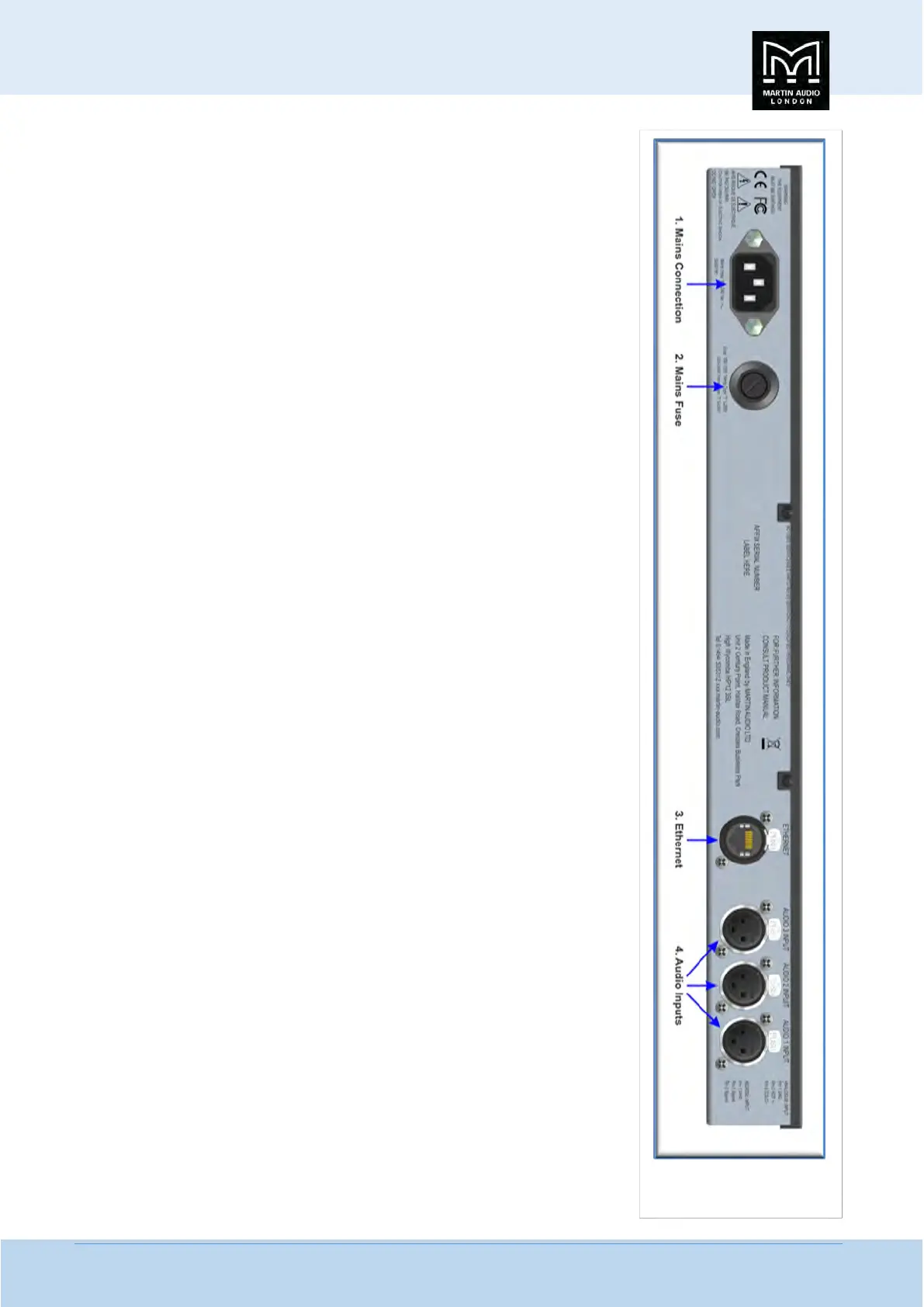

Rear Panel
1. Power Inlet- The unit should be connected to a suitable mains electricity supply using a
standard IEC power lead. The device has a switch mode power supply that is capable of
operating with a nominal mains voltage of 100V to 230V, 50/60Hz without re-configuration.
The IEC connector should be compatible with the retention clip so it can be secured with the
clip to ensure the connector cannot accidentally disconnect.
2. Main Fuse- This should be fitted with an anti-surge (T)fuse rated at 1 amp.
3. Ethernet- Neutrik Ethercon allowing an ethernet connection using wither a standard CAT5E
connector or an Ethercon cable.
4. Analogue / AES EBU Audio Inputs- Carries audio feed to the three ODU audio outputs
combined with the U-Net network.
