MLA System USER GUIDE
MLA System User Guide V2.1 376

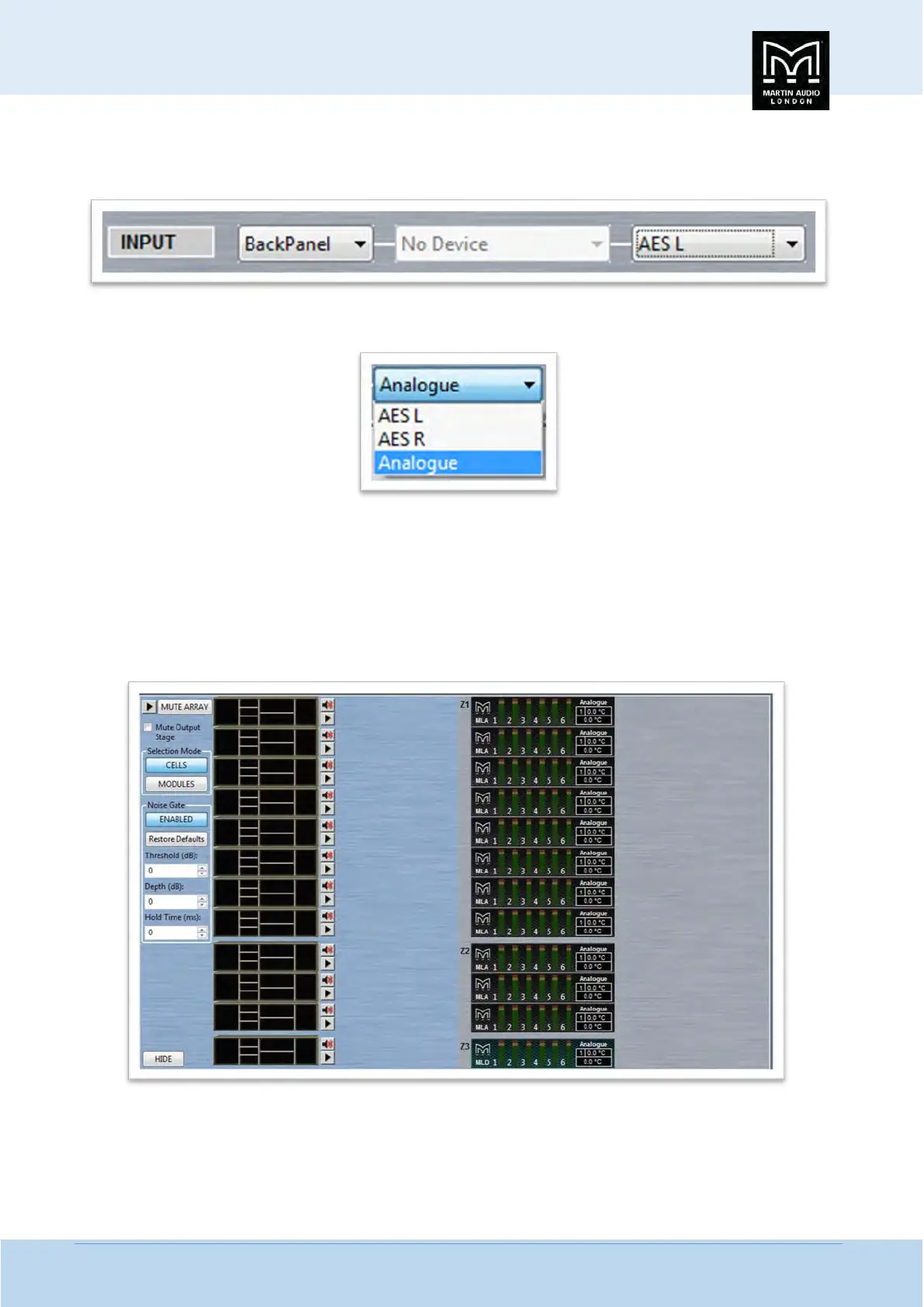

The array thumbnail will show the input settings for all cabinets so you will easily see if one is set differently to the rest. If you
see the new cabinet still set to Analogue you need to toggle the setting for the entire array. The input selection is at the bottom
of the window;-
Click on the drop down on the right hand side to select the input mode. Select "Analogue"
This will now mean that all cabinets in the array have the same setting. Now use the drop down again and re-select AES L or R as
required. The entire array will now be set with the same input.
Test the Array
MLA and MLA Systems have a comprehensive test function available which is well worth using following a module replacement.
Double click on the array in the Project overview then double click on the array thumbnail on the right hand side to access the
output Window;-
This shows all cells in each cabinet individually and clicking on any of them will toggle between muted and un-muted. A muted
cell will turn red.
