MLA System USER GUIDE
MLA System User Guide V2.1 196
Ground Stacking

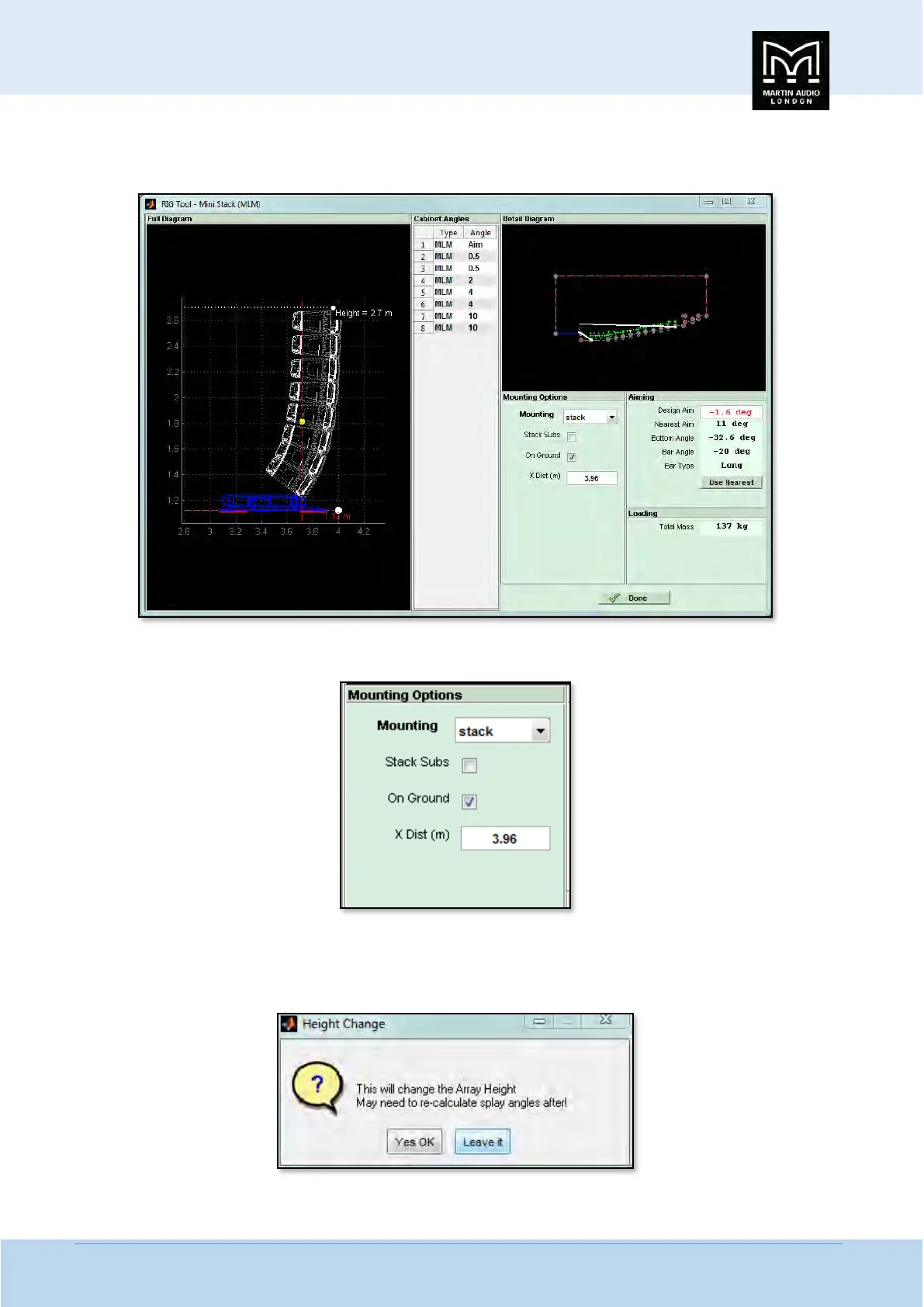

Here we see an eight box MLA Mini ground stack;-
The principal difference with MLA Mini is in the Mounting Options;-
We now have the option to stack on top of the subs. This option will add the MSX subs below the array, a single sub for 1 to 4
cabinets and two MSX for 5 to 8 cabinets. This will naturally change the height of the array so you will see this window to prompt
you to recalculate splay angles in the splay Tab.
