MLA System USER GUIDE
MLA System User Guide V2.1 313
1. Click and drag on the graph
2. Click and drag the properties faders
3. Use the up/down value buttons in the properties section
4. Directly type values into the value boxes.
Whilst this might seem over-versatility, it is intended to offer several options to suit the way that the system is being operated.
If adjustments are being made with using a wireless tablet PC with a stylus whilst walking around a venue, certain options may
be easier to use than if you were sitting at a desk with a mouse plugged in to the PC.
Zones
DD12 has a unique method for zone selection. Any cabinet can be a member of any (or none) of the ten zones available which

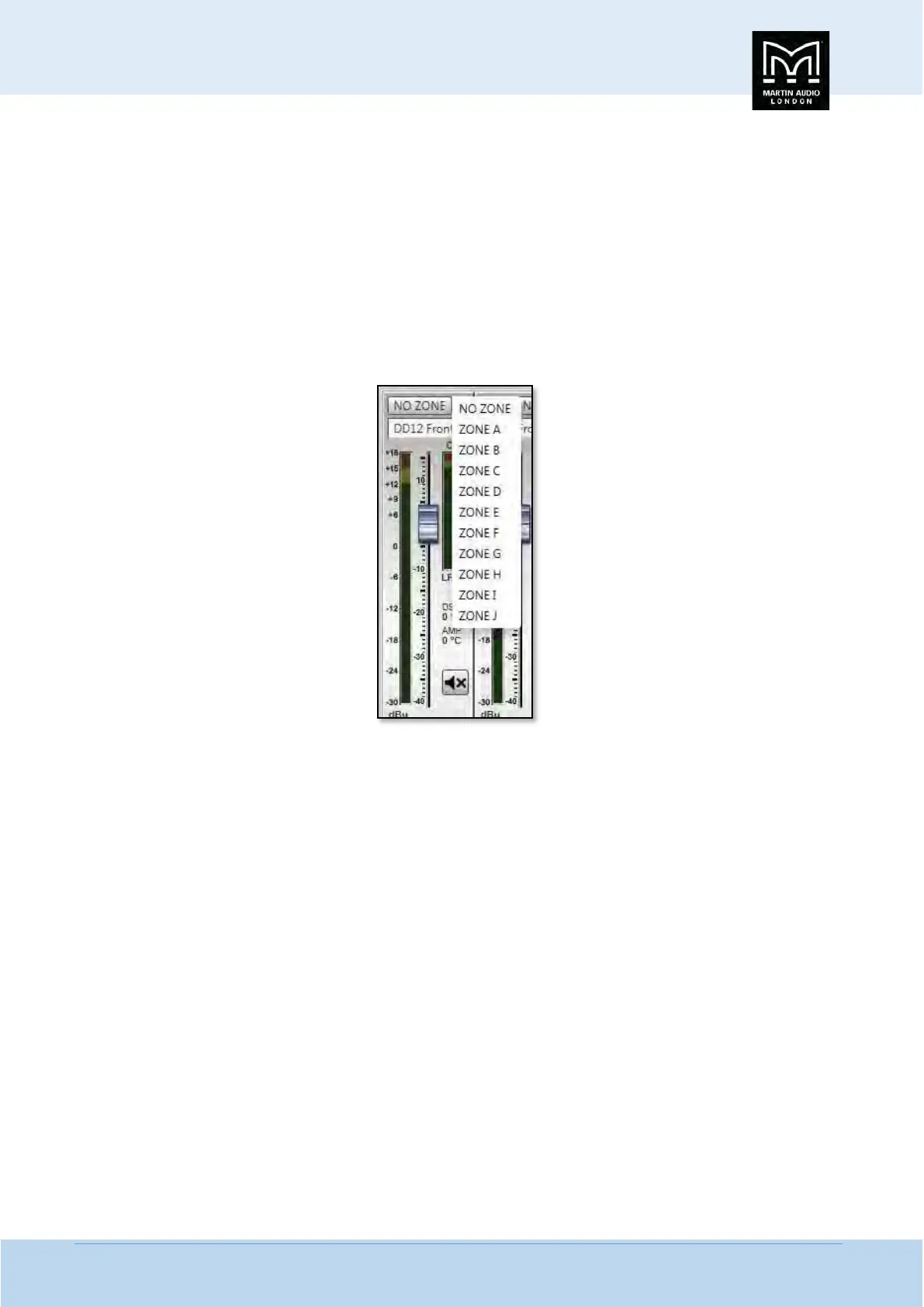

are labelled A to J. To select a zone click on the Zone button at the top of the Overview page;-
Click on the desired zone and it will be displayed on the zone button. The zones are colour coded to make it instantly obvious
which cabinets are on the same zones. Colours are as follows;-
A is red,
B is blue,
C is green
D is magenta
E is cyan
F is yellow
G is dark green
H is purple
I is orange
J is black
All functions on cabinets in the same zone will be duplicated regardless of which cabinet in the zone is used to make
adjustments;-
