As with Compact, Display will calculate the closest angle available using the ground stack bar and if this doesn't match the Design
aim it will be displayed in red with the option to 'Use Nearest'. Once again this option will change the Design angle to match the
actual angle of the array so the EQ optimisation will be based on exactly where how the array is angled;-

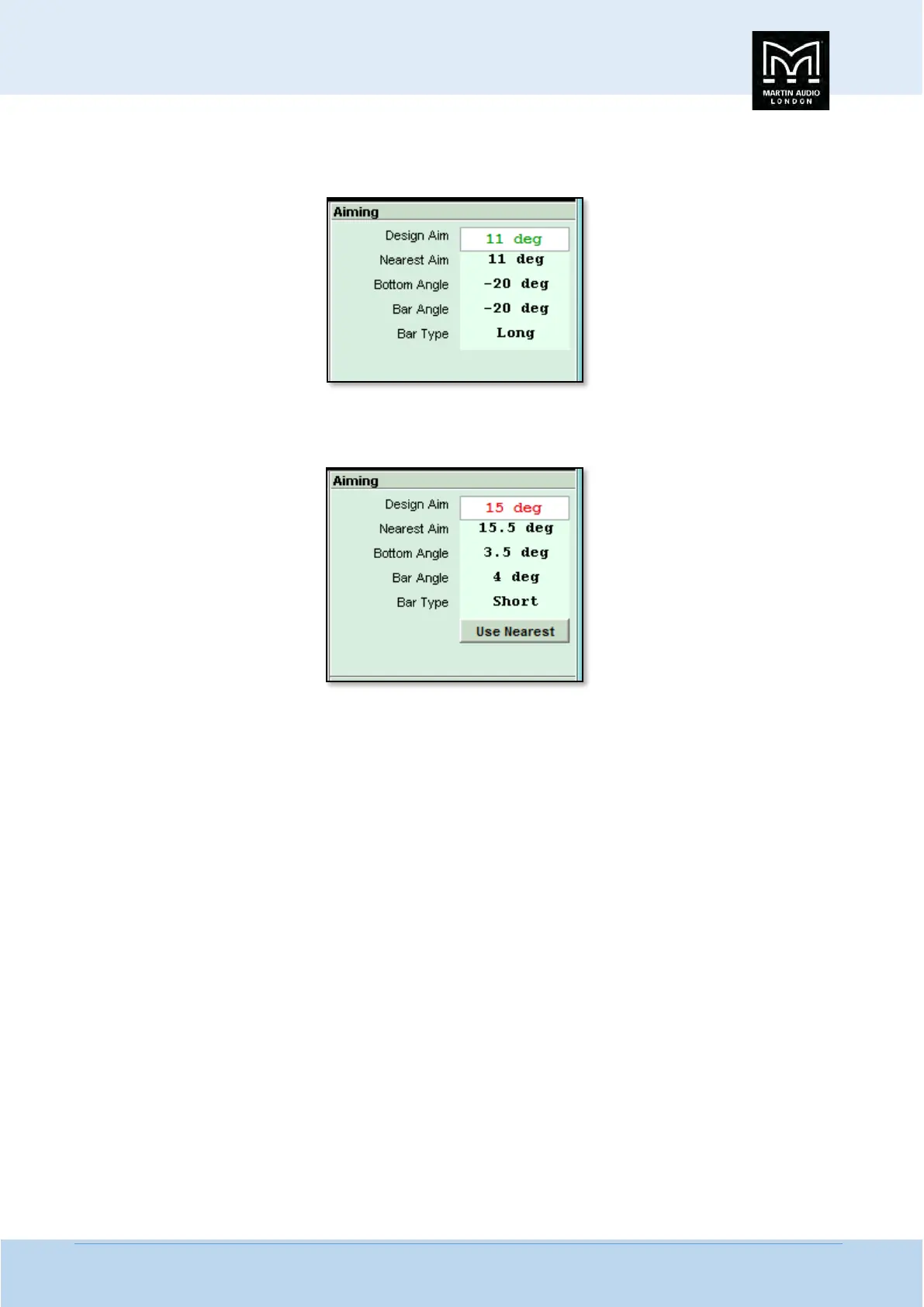

As with Compact there are two types of ground stack bar, a long and a short. For ground stack arrays which require a down-tilt
on the bottom enclosure the long bar is used as in the above example, for array which require an up-tilt the short bar is used;-
Also in common with MLA Compact, the ground stack bars are labelled with the angles that they can produce so that is shown
in the Aiming panel rather than which particular holes in the bar and cabinet to use.
Pole Mount
The final option for rigging is pole mount available for two to four MLA Mini on top of a single MSX using the ASF20071 wind-up
distance pole which is supplied with either the fixed or adjustable pole mount assemblies or can be purchased as an accessory
and used with the MLA Mini Universal Bracket (ASF20051) and the Pole Mount Adaptor (ASF20045).
Here is an initial Rig Tool Window for a pole mount system following a 4 cabinet optimisation;-
