MLA System USER GUIDE
MLA System User Guide V2.1 104

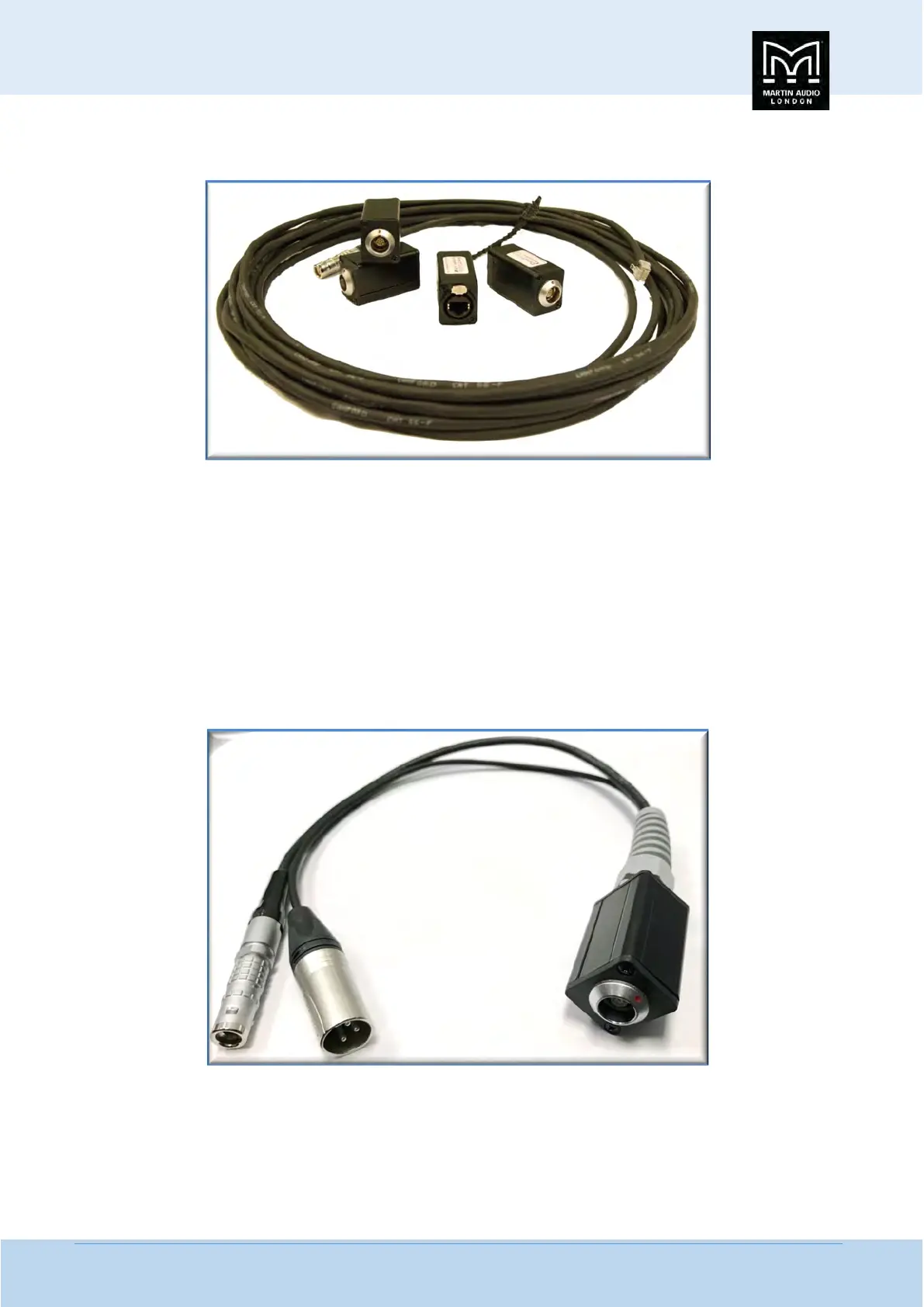

Adaptors
There are several adaptors available to assist with cabling up a system; -
PCX00048 This is a U-Net coupler for extending cables. It is housed in a Neutrik D shell Barrell and has an ODU connector at
each end wired together.
PCX00043 This is housed in an identical Neutrik housing to the U-Net coupler but has an EtherCon connector at one end and
ODU connector at the other. This allows to mix the cable infrastructure between ODU cables and low cost CAT5E cable which
would be a more cost-effective solution for installed systems.
PWA00056 This is a 10m CAT5E cable terminated one end in an ODU connector and the other in an RJ45 connector. As above
this offers a cost-effective solution for certain applications.
Audio/U-Net Splitter
The U-Hub audio integration features will allow audio and network signals to be fed to an array using a single cable. To split the
combined U-Net and audio signals the dedicated adaptor assembly part number PWAxxxxx is used.
This receives the combined U-Net and audio feed from the U-Hub and splits it into independent ODU and XLR cables to connect
to the U-Net port and audio input on all MLA series products.
