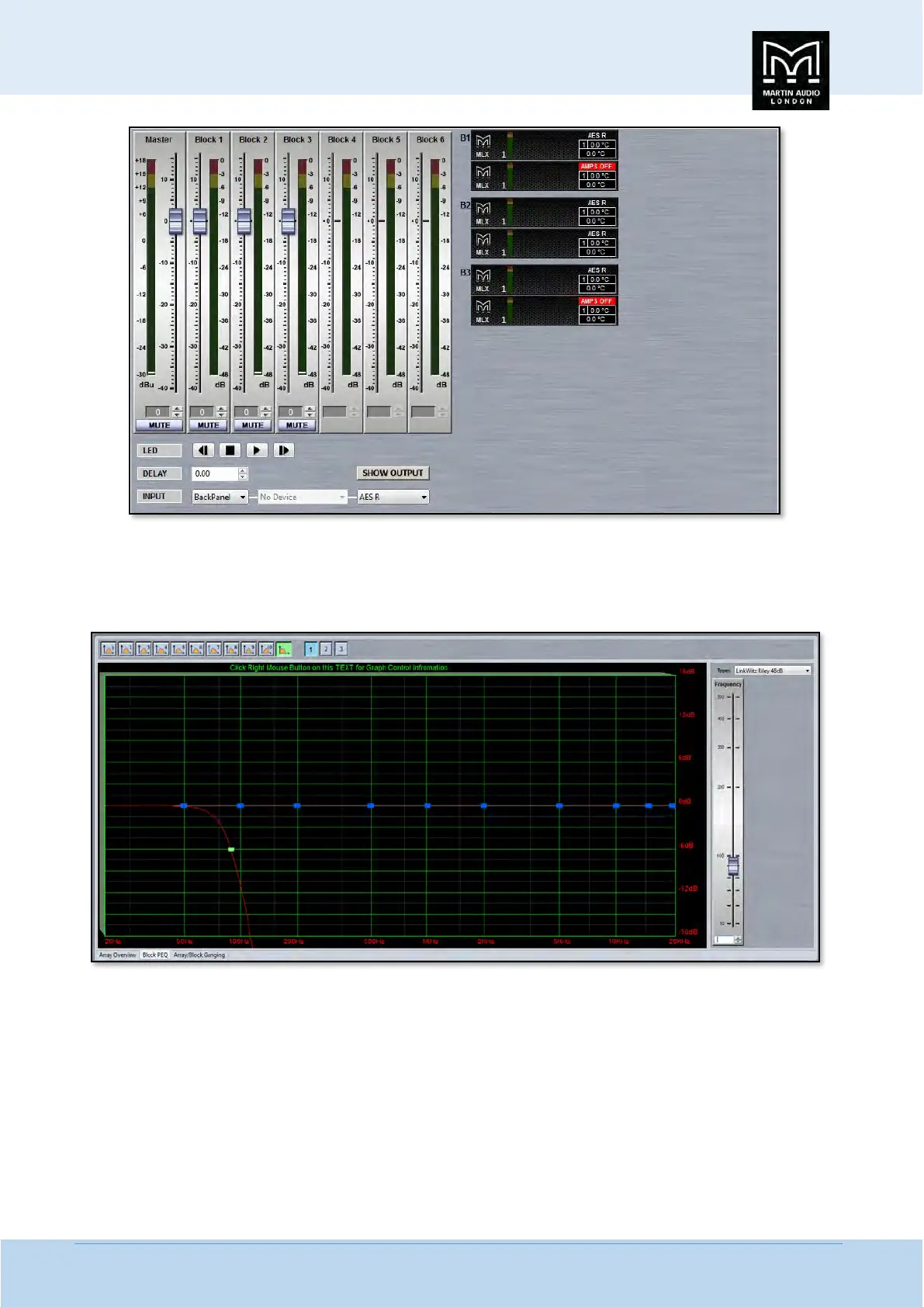

Block PEQ
Equalisation in the subs is referred to as ‘Block PEQ’ on the tab. It is almost identical to the EQ page for the MLA, MLD and MLA
Compact with a low pass filter replacing the high pass as you might expect;-
There are also ten PEQ filters at your disposal, each with exactly the same functionality and control. The low pass filter in
common with the high-pass in the MLA, MLD and Compact, can be either Bessel, Butterworth or Linkwitz Riley with slopes from
6dB per octave up to 48dB per octave. The frequency can range from 50Hz up to 500Hz;-
