MLA System USER GUIDE
MLA System User Guide V2.1 266

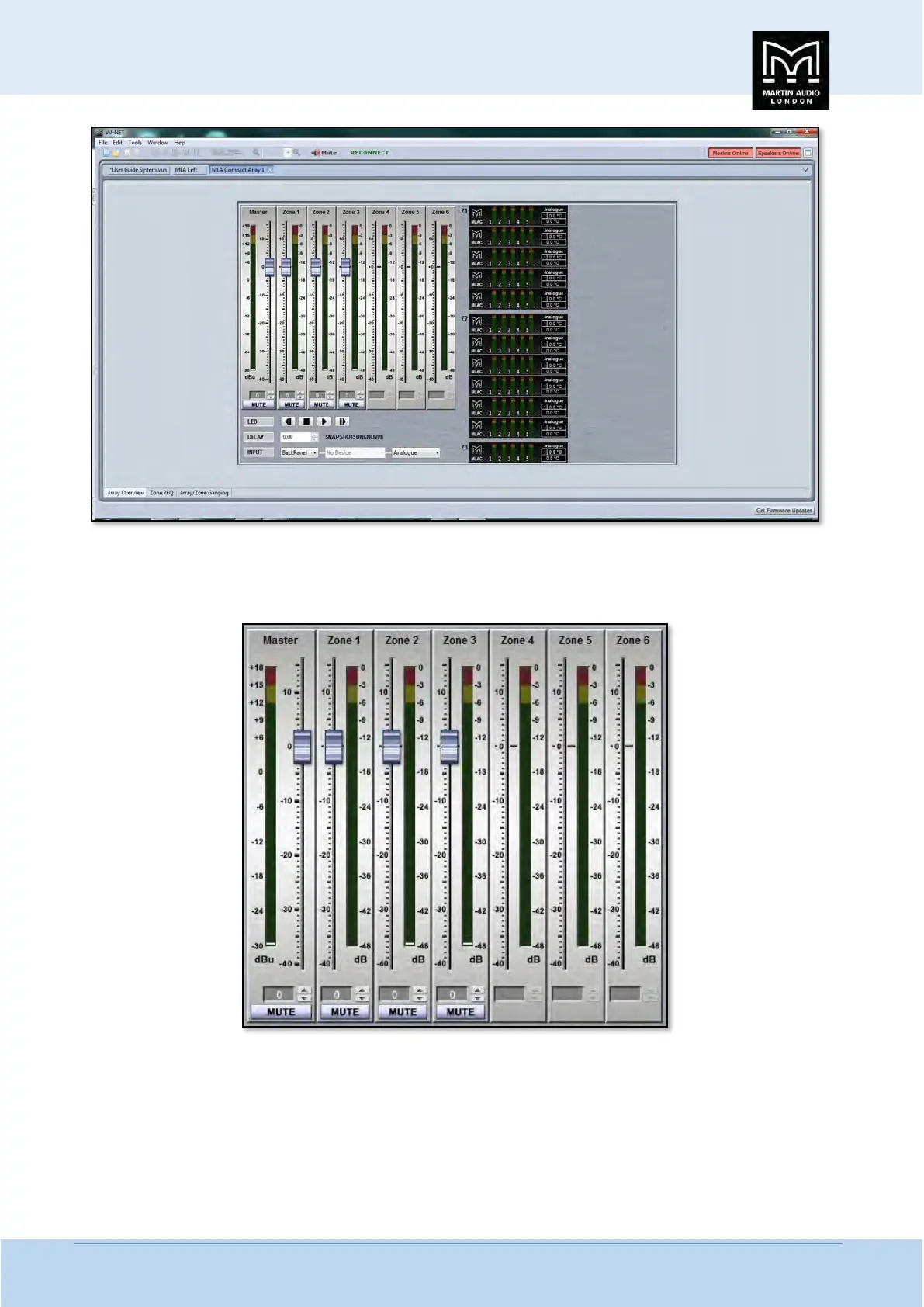

This page is the Array Overview; each array also has a tab for Zone PEQ and Ganging. First we will look at the metering and gain
faders. Here is a 12 box array that has been divided into three zones, the top five cabinets, next six and an MLD. The Master and
Zone Section looks like this;-
The Master Gain allows up to +15dB of gain or 40dB attenuation of the input level to the entire array, the meter shows the
absolute level to the input stage of the cabinets, it is pre-fader so if the level is clipping it is an indication that you need to
attenuate the signal upstream of the array, at the mixing console for example. The Master level as with the zone faders can be
adjusted in four ways, either dragging and dropping the fader knob to the required level, clicking just above or below the fader
knob which will increment or decrease the gain in steps specified in Preferences, clicking on the up/down arrows by the value
window or by typing a specific gain into the box at the bottom of the fader. A value between 15 and -40 can be entered, is a
value higher than 15 is typed, it will default to 15dB, if a value lower than -40 is typed it will default to -40.
