MLA System USER GUIDE
MLA System User Guide V2.1 345

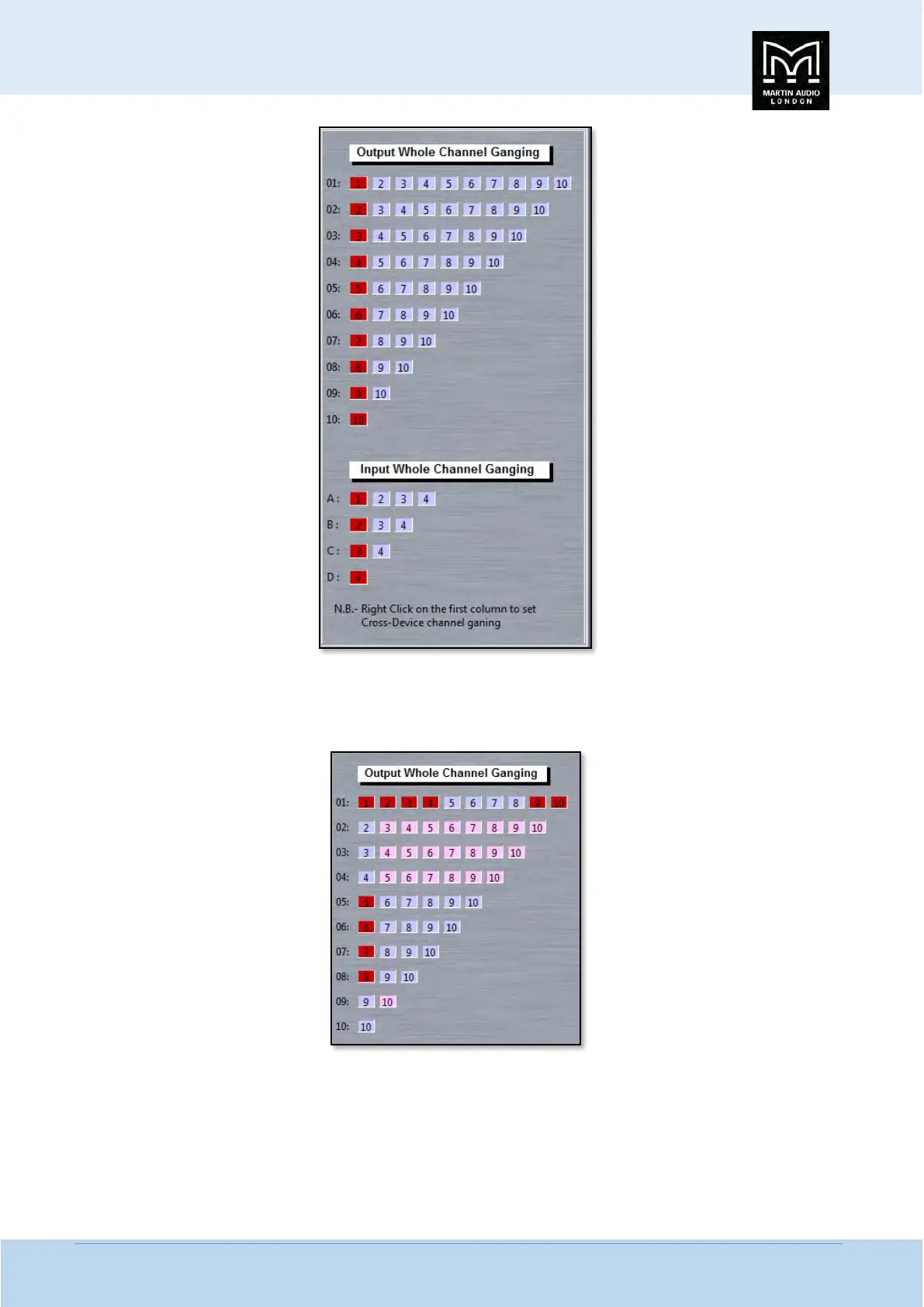

In the default state there is no ganging, each input and output is essentially ganged to itself as indicated by the red squares in
the left hand column. To gang output channel 1 to channels 2, 3, 4, 9 & 10 for example, click on the relevant squares in the
horizontal line by output channel one;-
You can see that the red squares by the channels that have been ganged have disappeared from the vertical column and are now
in the horizontal line from channel one. You will see on the part ganging screen that all parameters for the ganged channels are
now coloured red to indicate that they are all ganged together;-
