MLA System USER GUIDE
MLA System User Guide V2.1 287
Almost identical with just a minor difference in the position of the Led bargraph in the array diagram and of course the name
under the Martin Audio logo.
The input gain and muting is identical to other cabinets and sub arrays can be zoned in exactly the same way giving independent
gain and mute on the Overview page;-
Sub arrays when zoned are referred to as ‘blocks’ rather than zones.

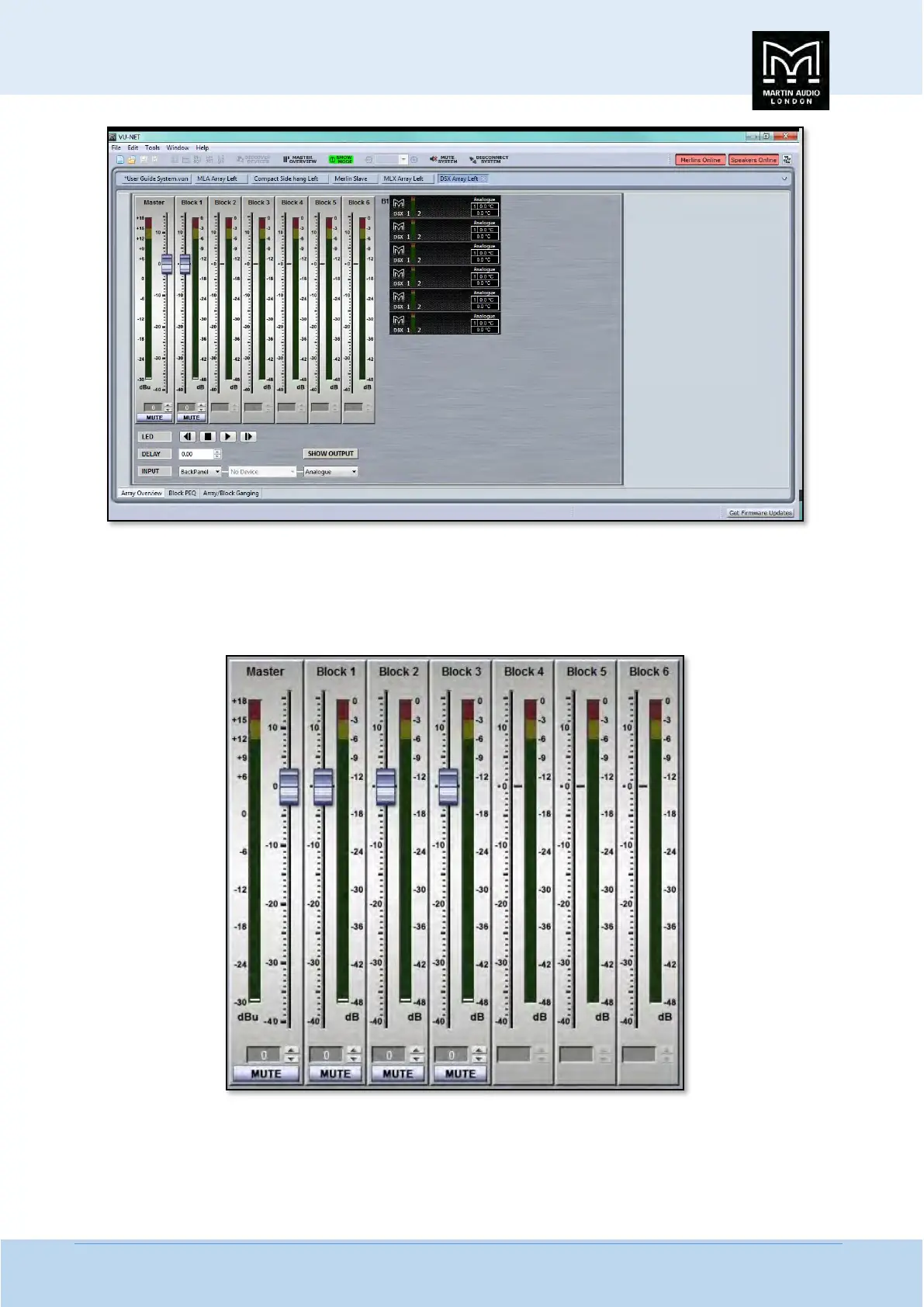

The array thumbnail is almost identical to the MLA/MLD and MLA Compact just with a single LED level meter to reflect the single
cell. The temperature readout will always show ‘1’ and display the temperature of the single amplifier channel on the top line
