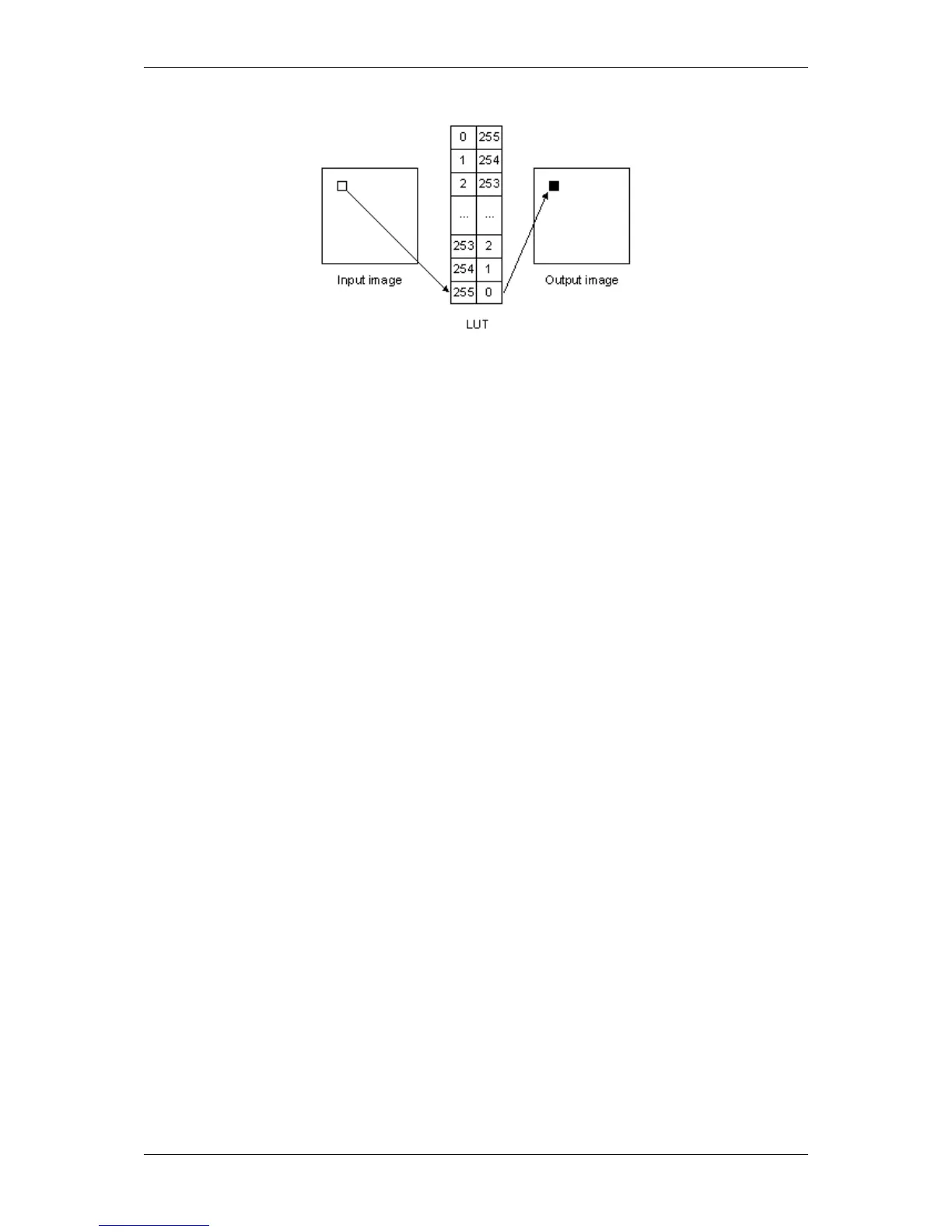

Figure 1: Look-Up-Table which inverts a pixel of an 8 bit mono image
I.e., a pixel which is white in the input image (value 255) will become black (value 0) in the output image.
All MATRIX VISION devices use a hardware based LUT which means that
• no host CPU load is needed and
• the LUT operations are independent of the transmission bit depth.
20.7.1.2 Setting the hardware based LUTs via LUT Control
On the mvBlueFOX3 using wxPropView (p. 74), you will find the LUT Control (p. 120) via "Setting -> Base ->
Camera -> GenICam -> LUT Control".
wxPropView (p. 74) offers a wizard for the LUT Control (p. 120) usage:
1. Click on "Setting -> Base -> Camera -> GenICam -> LUT Control".
Now, the "Wizard" button becomes active.
