7.2 Order code nomenclatures 31

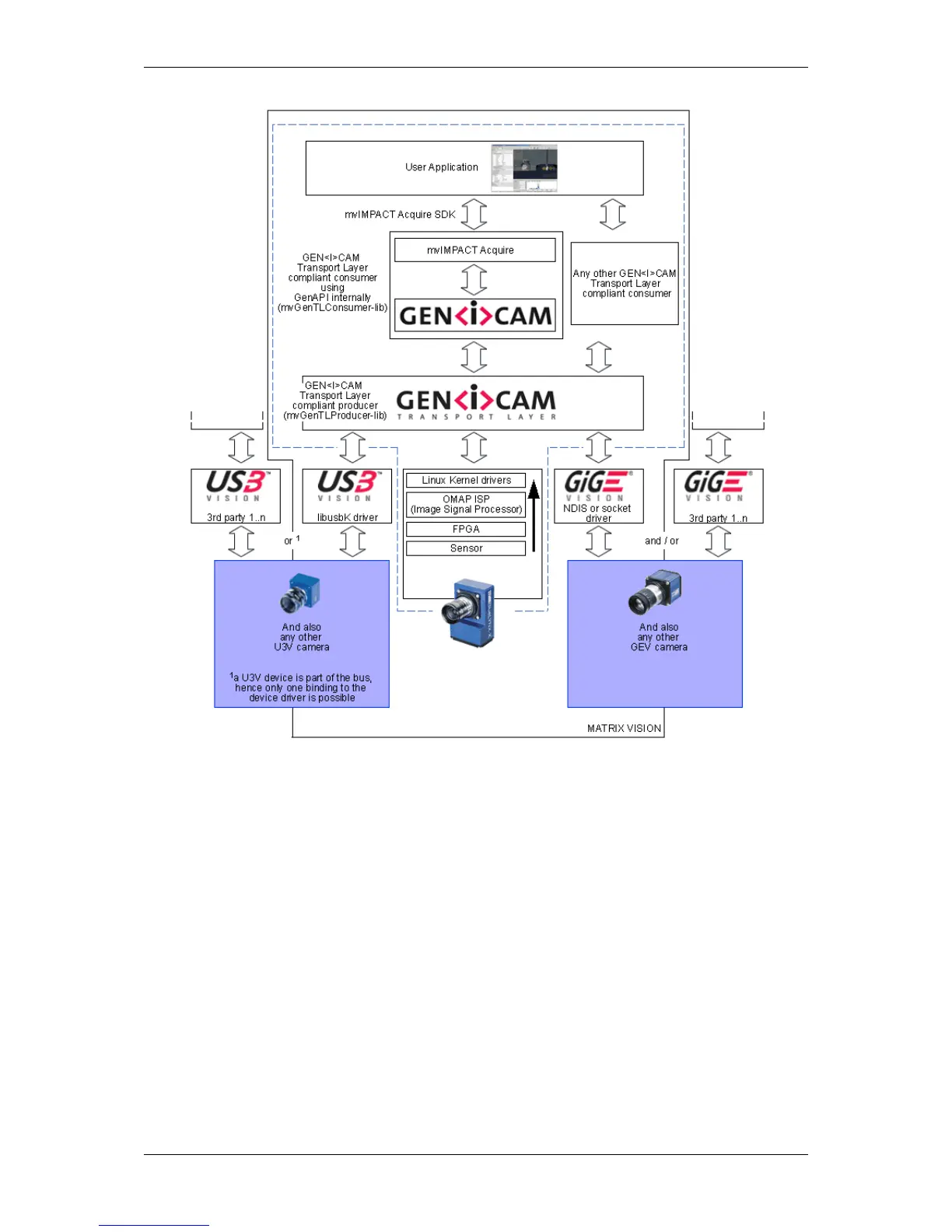

Figure 2: Software concept of mvBlueFOX3
As shown in figure 2, for the mvBlueFOX3 the mvIMPACT_Acquire (p. 157) interface is stacked on the USB3
Vision (p. 161) and Genicam (p. 155) layers. The mvIMPACT_Acquire (p. 157) interface internally uses the Gen←-
ICam (p. 155) runtime libs, so that it can be considered as an user application written with the GenICam (p. 155)
interface.
7.2 Order code nomenclatures
7.2.1 mvBlueFOX3
The mvBlueFOX3 nomenclature scheme is as follows:
mvBlueFOX3 - (M) A B C - (1)(2)(3)(4)
- (M): Model, add "M" for single-board model
- A: Sensor model
MATRIX VISION GmbH
