20.4 Working with triggers 229

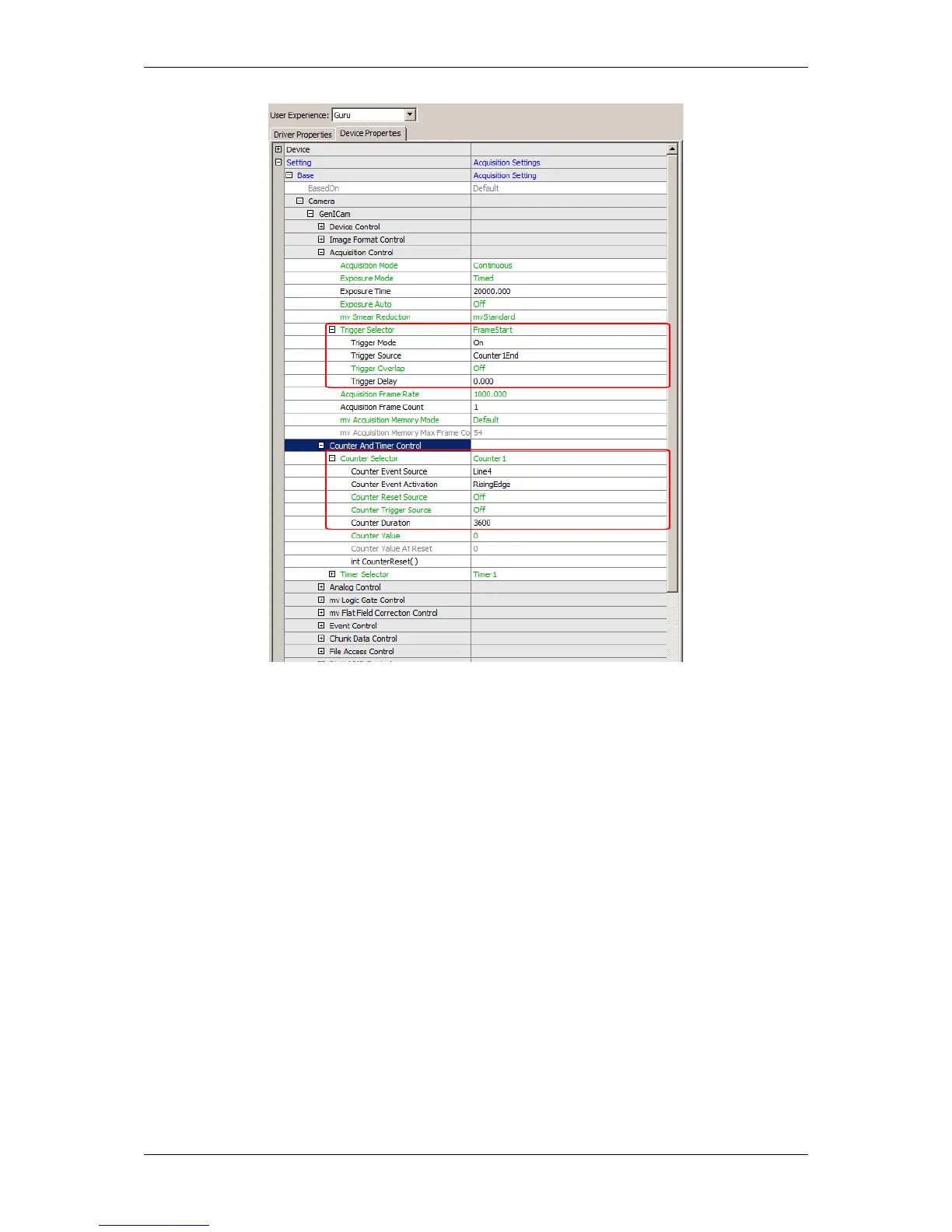

Figure 2: wxPropView setting
To reset "Counter1" at Zero degrees, you can connect the digital input 1 ("Line5") to the encoder Z signal.
20.4.2 Generating a pulse width modulation (PWM)
20.4.2.1 Basics
To dim a laser line generator, for example, you have to generate a pulse width modulation (PWM).
For this, you will need
• 2 timers and
• the active signal of the second timer at an output line
