9.2 Camera interfaces 59
9.2 Camera interfaces
9.2.1 Circular connector male (Power / Digital I/O)

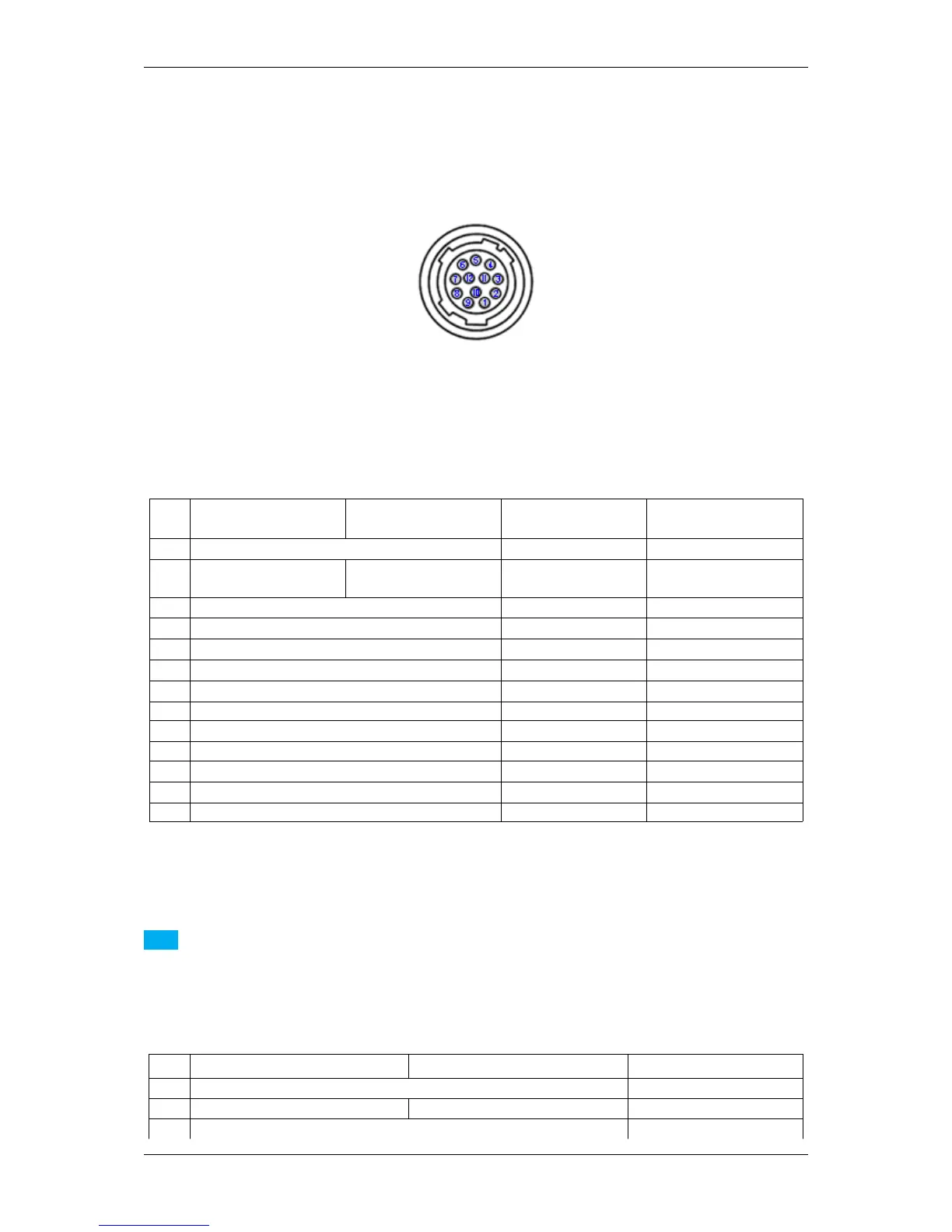

Figure 14: 12-pin (male; top view), digital I/O, power
Pin. mvBlueFOX3-1xxx |
Signal
mvBlueFOX3-2xxx |
Signal
Line in wxPropView Cable KS-BCX-HR12
color scheme
1 GND (for VDC) black
2 not connected, leave
open
12V - 24V brown
3 Opto DigOut3 Line3 red
4 Opto DigIn0 Line4 orange
5 Opto DigOut2 Line2 yellow
6 Opto DigOut0 Line0 green
7 IN_COMMON (DigIn GND) blue
8 RS232 RX violet
9 RS232 TX gray
10 OUT_V+ white
11 Opto DigIn1 Line5 white-black
12 Opto DigOut1 Line1 white-brown
Main connector shield Main connector shield Main shield
Connector (camera side): SAMWOO SNH-10-12 (RPCB) or equivalent
Plug (matching cable plug): Hirose HR10A-10P-12S (01) or equivalent
Note
RS232 is not implemented in the firmware.
9.2.1.1 Pinning of KS-BCX-HR12
Pin. CON 1 mvBlueFOX3-1xxx | Signal CON 1 mvBlueFOX3-2xxx | Signal CON 2 cutted cable | Color
1 GND (for VDC) black
2 not connected V
IN
+12V to +24V brown
3 DigOut3 (wxPropView (p. 74) numbering: line3) red
