54 CONTENTS

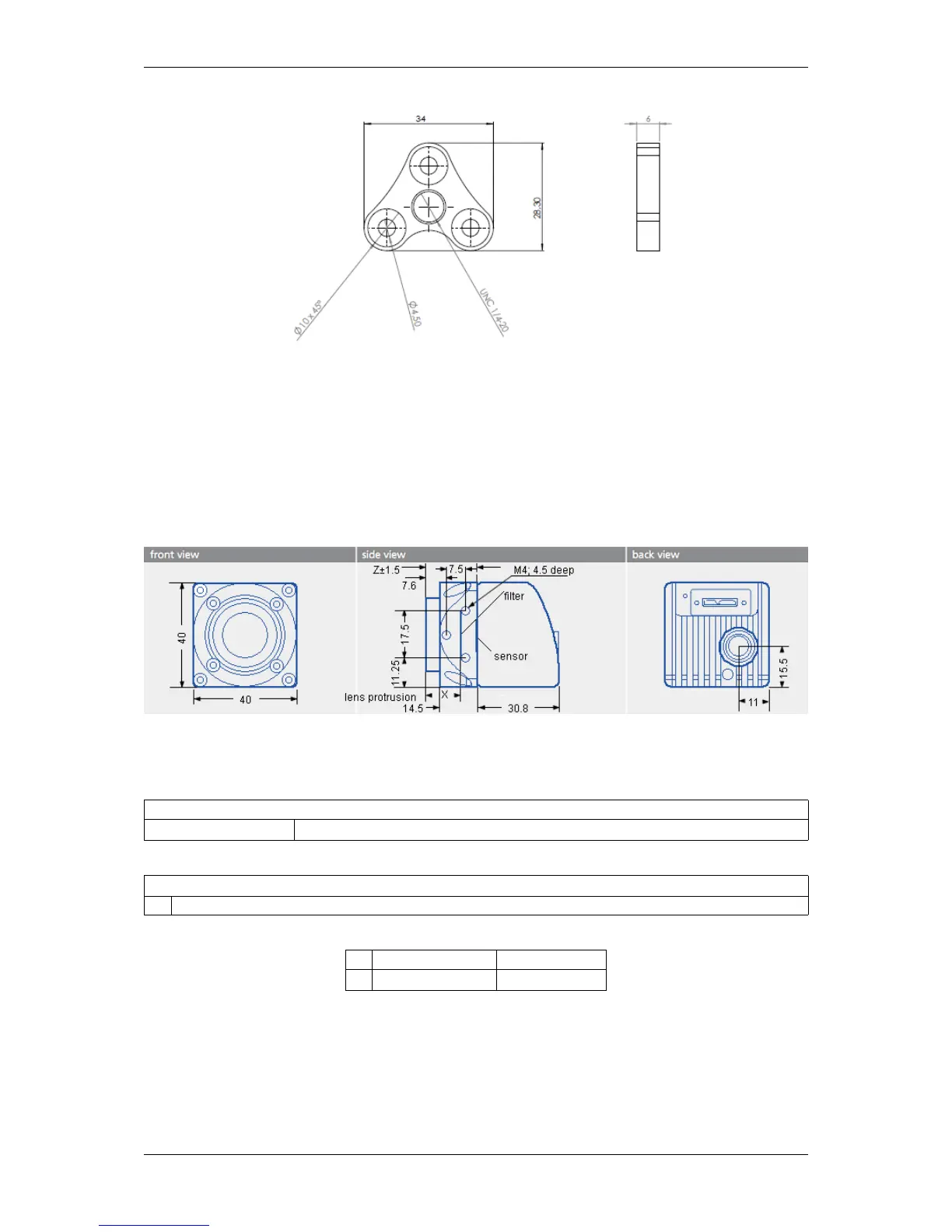

Figure 3: Dimensional drawing of tripod adapter
9.1.2 Standard model -2xxx
9.1.2.1 Option -1xxx (lensholder without back focus adjustment)
Figure 4: mvBlueFOX3-2xxx-1xxx dimensions and connectors
mvBlueFOX3-2xxx-1xxx
Size of body (w x h x l) 40 x 40 x 50.9 mm
Lens protrusion
X 10.7 mm with 1" lenses
C-Mount CS-Mount
Z 17.526 mm (in air) 12.5 mm (in air)
9.1.2.1.1 Mounting holes
The mvBlueFOX3-2xxx-1xxx provides integrated mounting holes.
