9.1 Dimensions 55

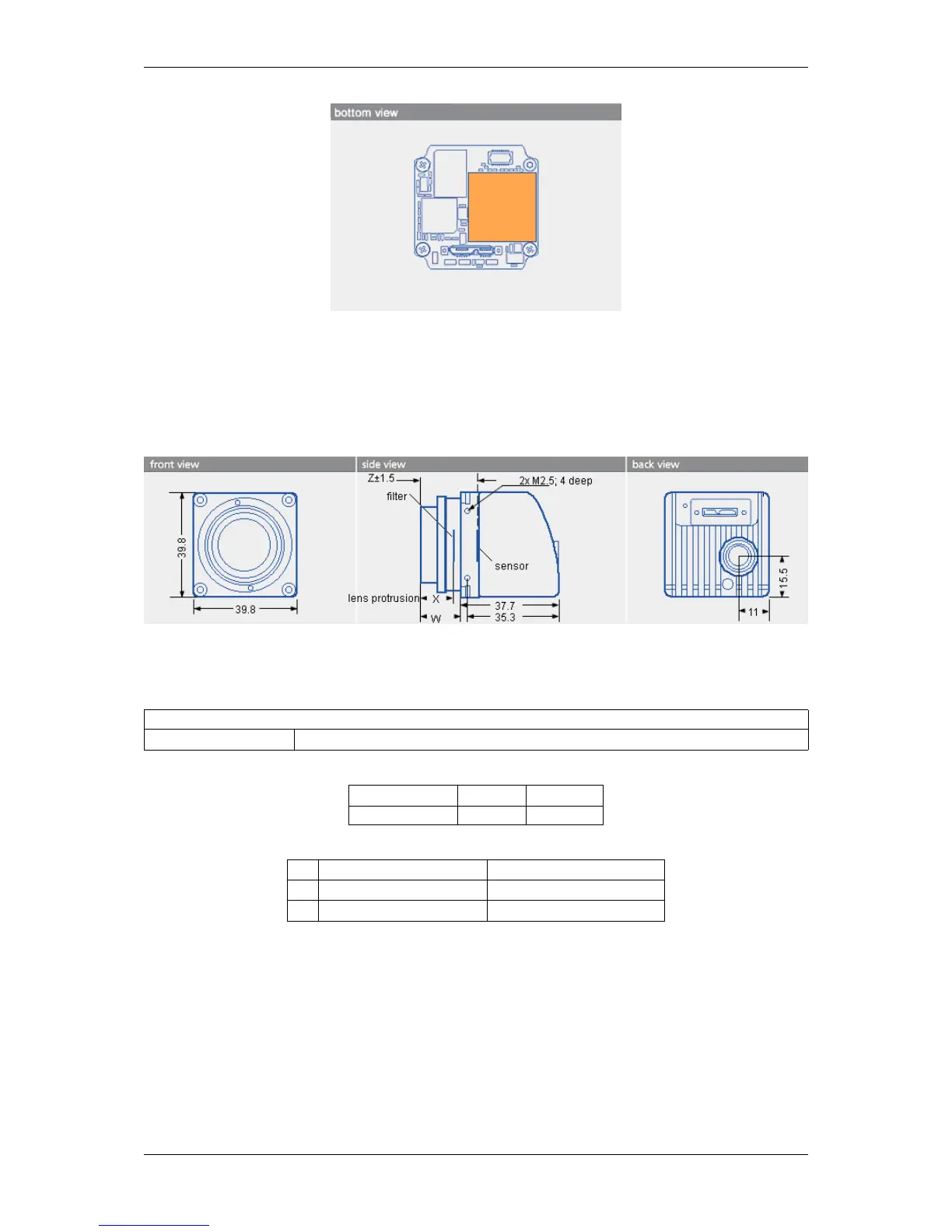

Figure 5: mvBlueFOX3-2xxx-1xxx mounting holes
9.1.2.2 Option -2xxx (lensholder with back focus adjustment)
Figure 6: mvBlueFOX3-2xxx-2xxx dimensions and connectors
mvBlueFOX3-2xxx-2xxx
Size of body (w x h x l) 39.8 x 39.8 x 37.7 mm
Lens protrusion C-Mount CS-Mount
X 8 mm 6 mm
C-Mount CS-Mount
W approx. 15 mm (C-mount) approx. 10 mm (CS-mount)
Z 17.526 mm (in air) 12.5 mm (in air)
9.1.2.2.1 Mounting holes
The mvBlueFOX3-2xxx-2xxx provides integrated mounting holes.
