22.7 mvBlueFOX3-1100 (11 Mpix [3856 x 2764]) 347
(ImageHeight
*
( 2176 )) + (VerticalBlank
*
2176 )
FrameTime = ------------ ------------
PixelClock PixelClock
1000000
FPS_max = ----------------
FrameTime
22.6.3.2 Snapshot mode
To calculate the maximum frames per second (FPS
max
) in snapshot mode you will need following formula:
(ImageHeight
*
( 2176 )) + (VerticalBlank
*
2176 )
FrameTime = ------------ ------------
PixelClock PixelClock
1000000
FPS_max = ----------------
ExposureTime
22.6.4 Device Feature And Property List
22.6.4.1 Color version
22.7 mvBlueFOX3-1100 (11 Mpix [3856 x 2764])
22.7.1 Introduction
The sensor features several acquisition modes ("mv Shutter Mode"):
• rolling shutter ("mvRollingShutter") and
• global reset release shutter ("mvGlobalReset").

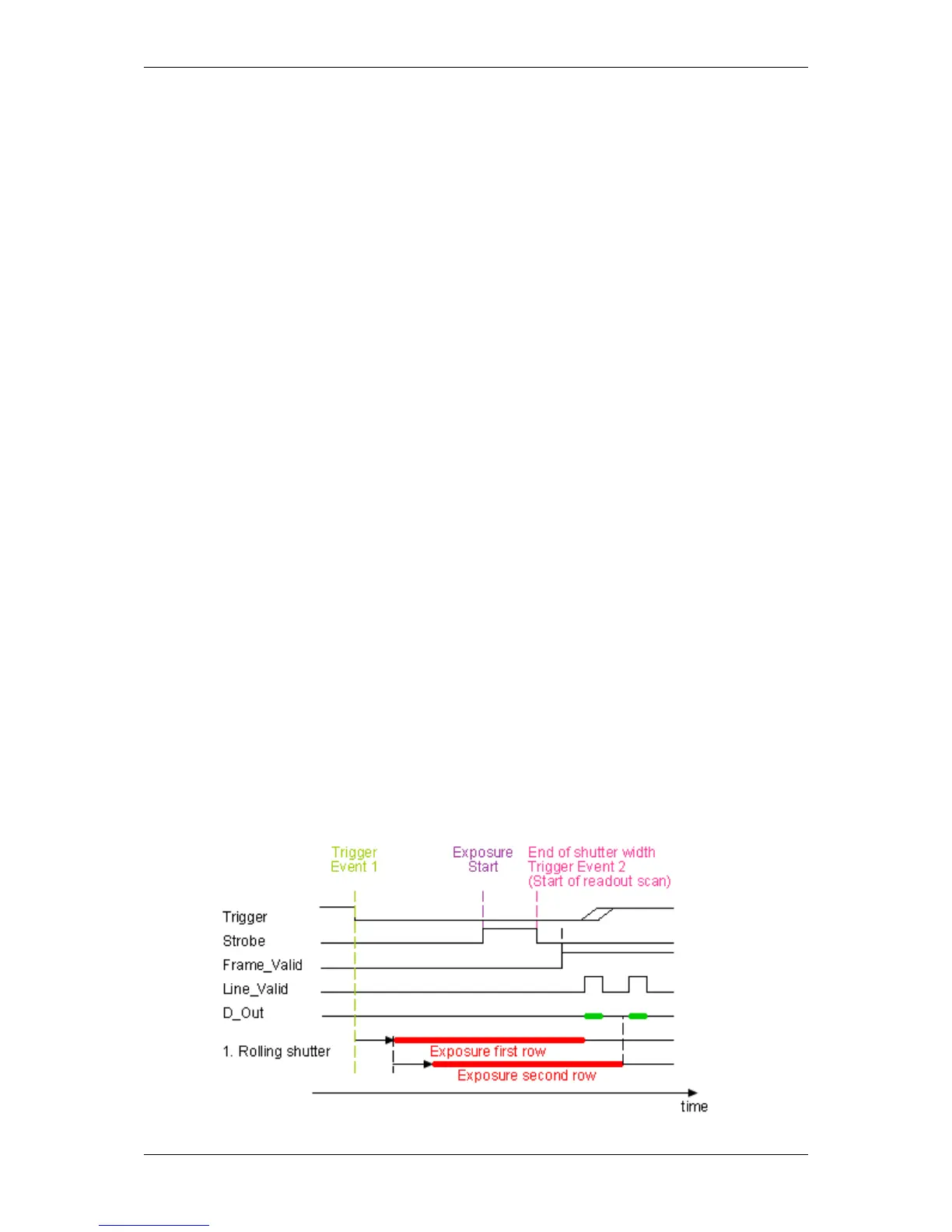

With the rolling shutter the lines are exposed for the same duration, but at a slightly different point in time:
