2. issuing Timer2 for the long exposure time (retriggered by Counter1End).
3. Every trigger issues Timer1 for the short exposure.
4. Afterwards, an AND gate followed by OR gate combines the different exposure times.
In wxPropView (p. 74) it will look like this:

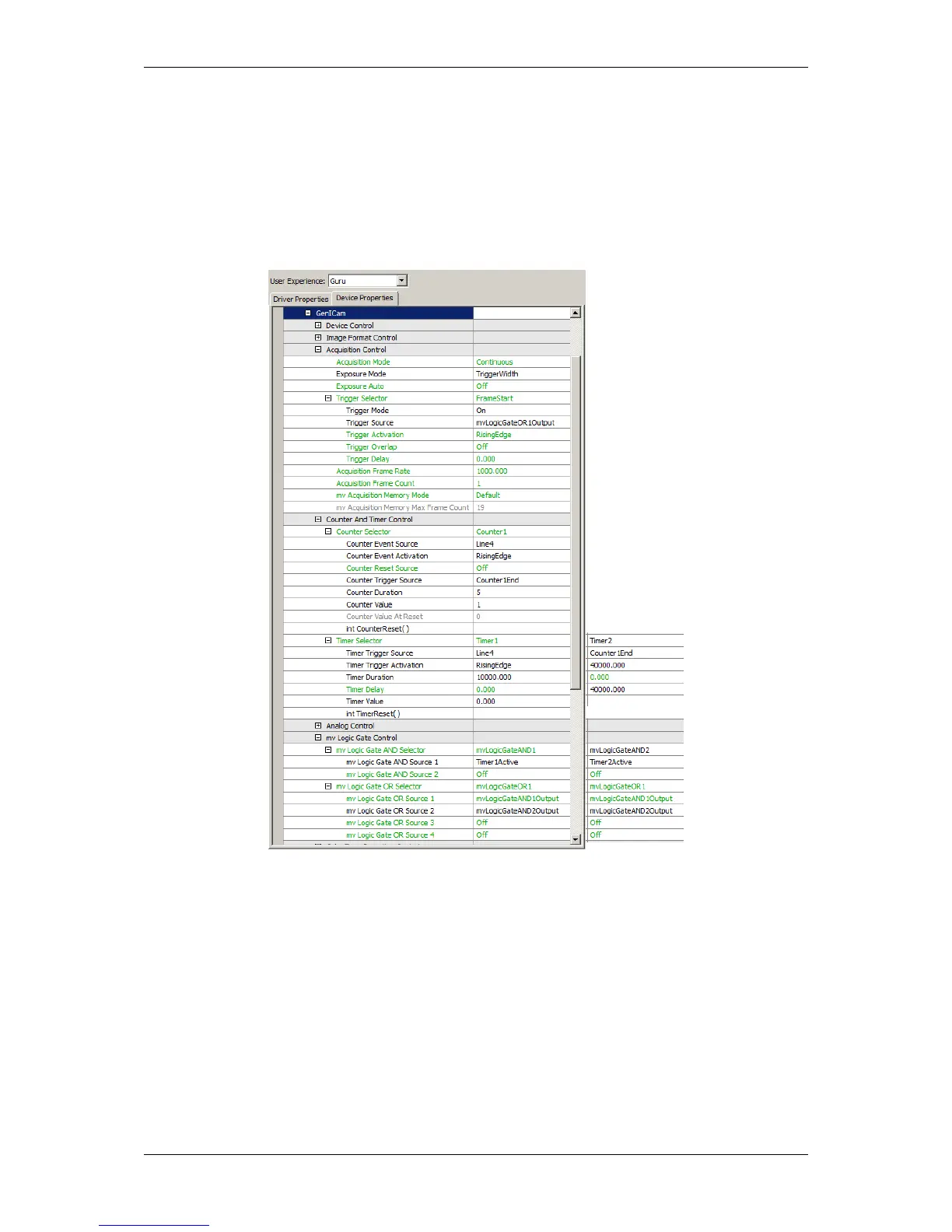

Figure 3: wxPropView - Logic gate setting 2
20.4.5 Detecting overtriggering
20.4.5.1 Scenario
The image acquisition of a camera consists of two steps:
