Figure 1: Spectral sensitivity mvBlueFOX3-1012dG

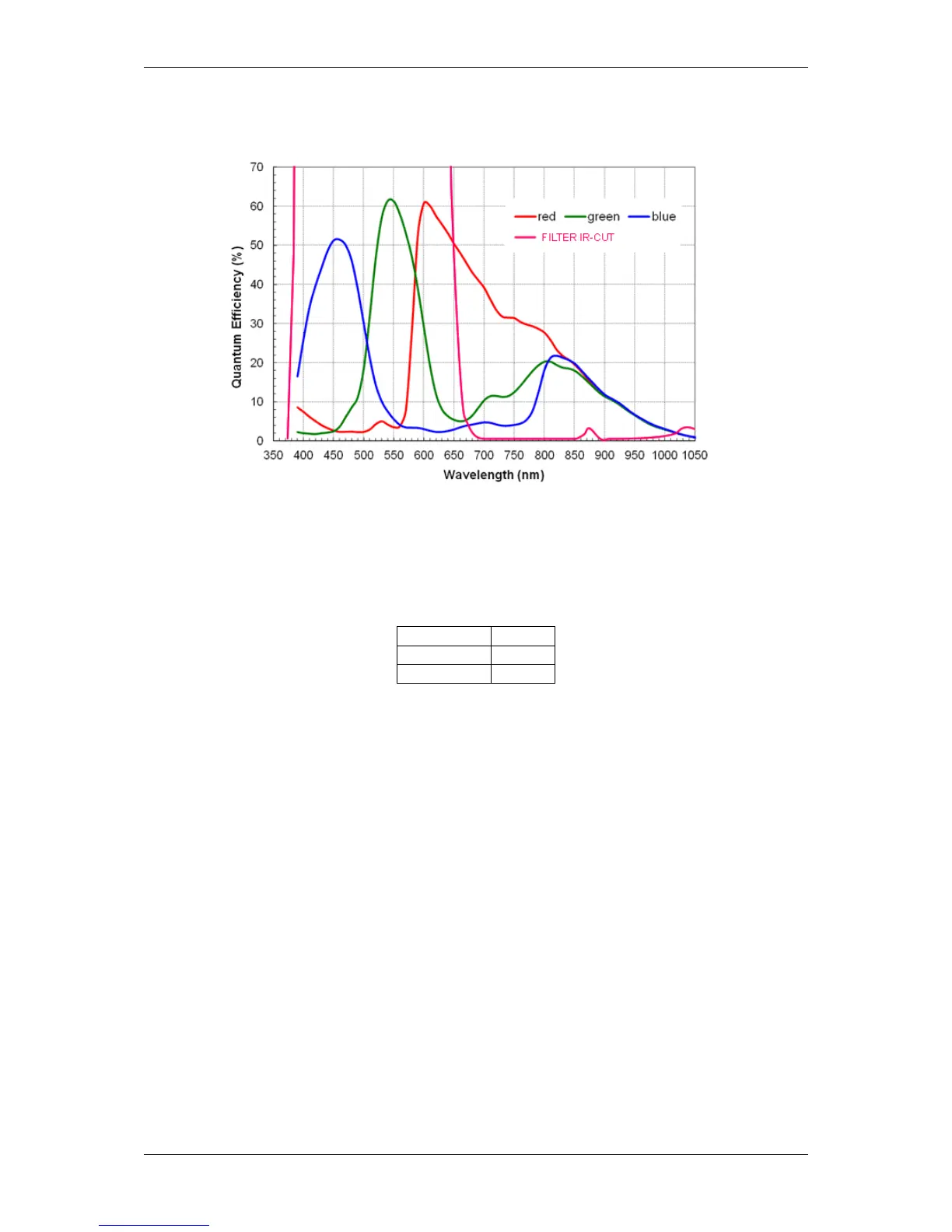

Figure 2: Spectral sensitivity mvBlueFOX3-1012dC
22.1.3 Timings
Name Value
PixelClock 40 & 66
VerticalBlank 25
22.1.3.1 Free running mode
To calculate the maximum frames per second (FPS
max
) in free running mode you will need following formula:
(ImageHeight
*
( 1650 )) + ((VerticalBlank+2)
*
1650 )
FrameTime = ------------ ------------
PixelClock PixelClock
If exposure time is lower than frame time:
1000000
FPS_max = ----------------
FrameTime
If exposure time is greater than frame time:
1000000
FPS_max = ----------------
ExposureTime
