22.1.3.2 Snapshot mode
To calculate the maximum frames per second (FPS
max
) in snapshot mode you will need following formula:
(ImageHeight
*
( 1650 )) + ((VerticalBlank+2)
*
1650 )
FrameTime = ------------ ------------
PixelClock PixelClock
FPS_max = 1
-----------------------------------
FrameTime + ExposureTime
Note
The exposure time step width is limited to the sensor's row time of 41.3 us and therefore
- auto exposure with very low exposure times will perform with relatively large increments and
- exposure mode = TriggerWidth (if available) will perform with a jitter corresponding to the row time
22.1.4 Device Feature And Property List
22.1.4.1 Gray scale version
22.1.4.2 Color version
22.2 mvBlueFOX3-1012d (1.2 Mpix [1280 x 960])
22.2.1 Introduction
The sensor features one acquisition mode:
• rolling shutter.

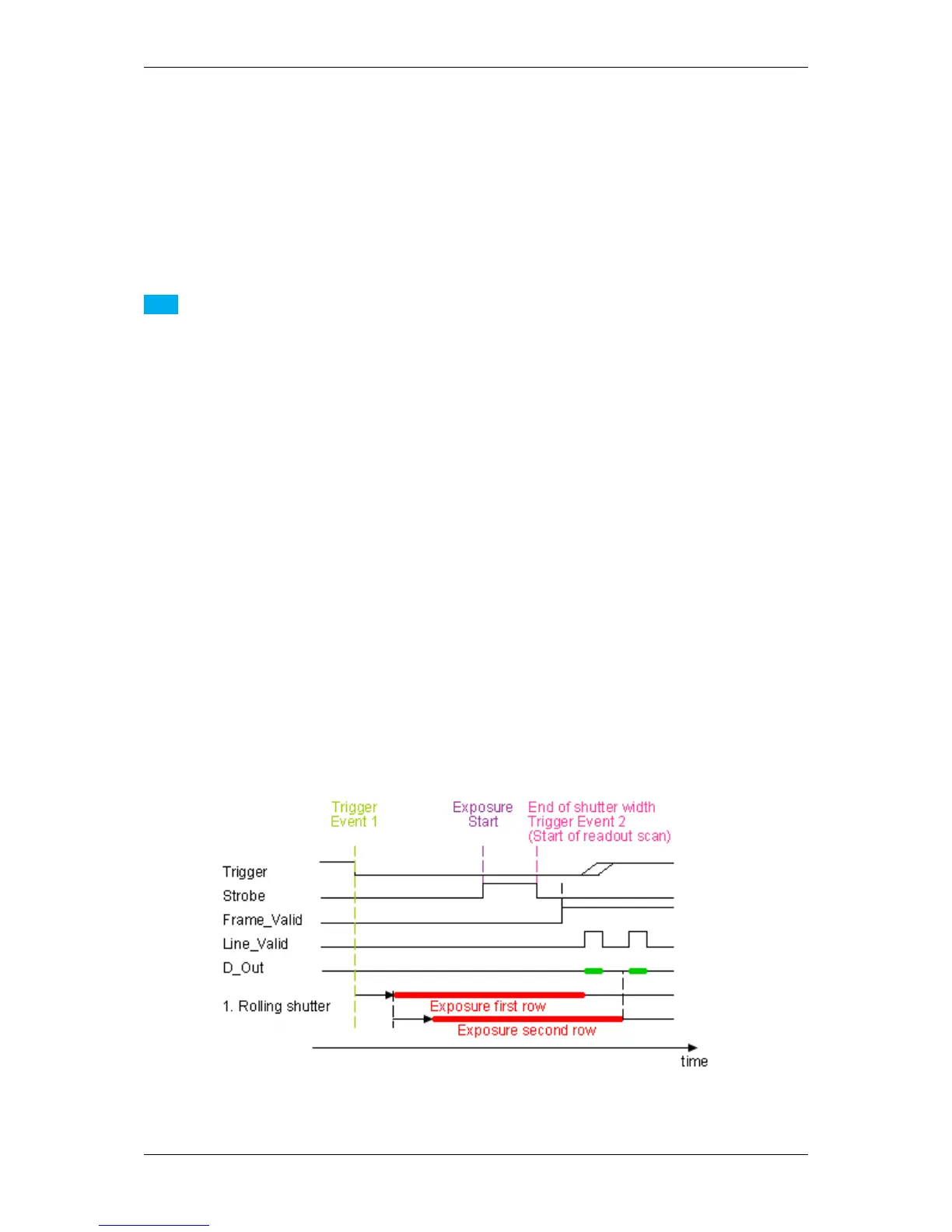

With the rolling shutter the lines are exposed for the same duration, but at a slightly different point in time:
Figure 1: Rolling shutter
