9.1.4 Model without housing (-M2)
Warning
In combination with the connectors, the mechanical stress needs to be limited.

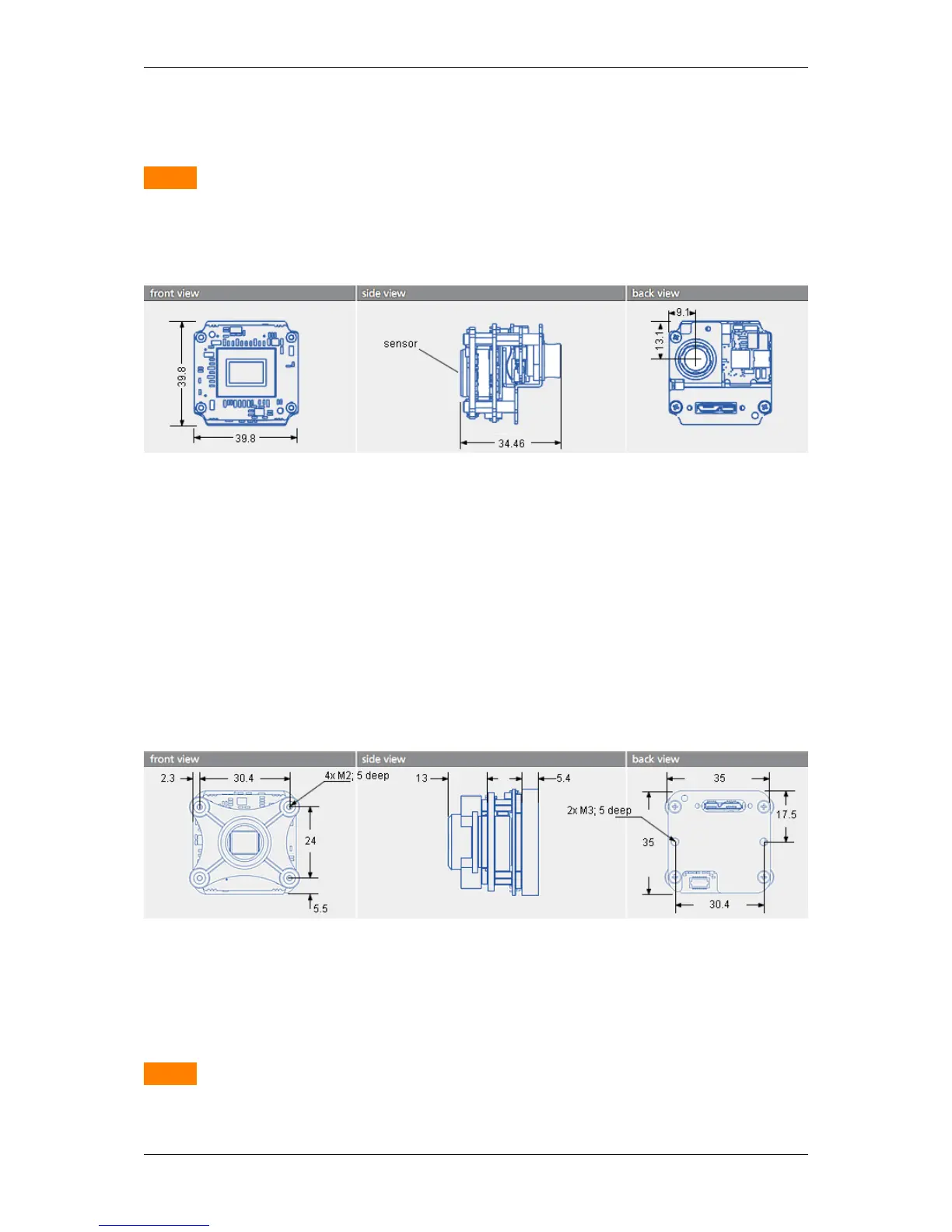

Figure 12: mvBlueFOX3-M2xxx-1xx2 dimensions and connectors
9.1.4.1 S-mount lensholder and heat sink backplate option (-495x)
The heat sink backplate is connected to the GND potential of the camera's power. The connection itself takes place
via the fixing points. Both, the mounting holes on the lensholder as well as the mounting holes at the heat sink plate
can be used to mount the camera.
Figure 13: mvBlueFOX3-M2xxx-495x dimensions and connectors
Warning
Please pay attention to the Important safety notes (p. 20) when operating the mvBlueFOX3-M2 without the
heat sink backplate.
