280 CONTENTS

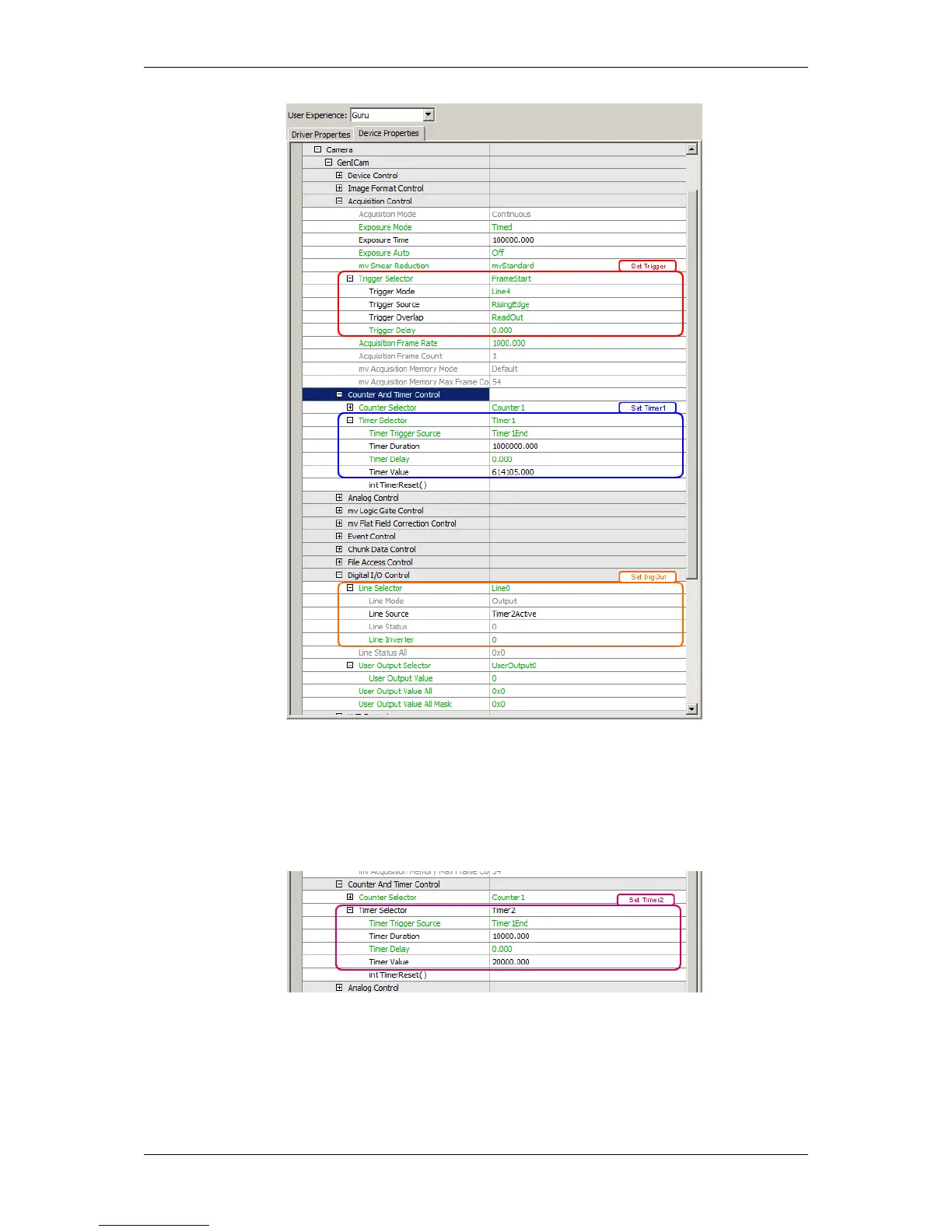

Figure 3: wxPropView - Setting of Timer1 on the master camera
2. Setting of Timer2 (purple box) on the master camera:
Figure 4: wxPropView - Setting of Timer2 on the master camera
3. Setting the trigger slave camera(s)
- The red box in Figure 5 is showing "Master - Slave"), which means that the master is triggered internally
and the slave camera is set as shown in Figure 4.
