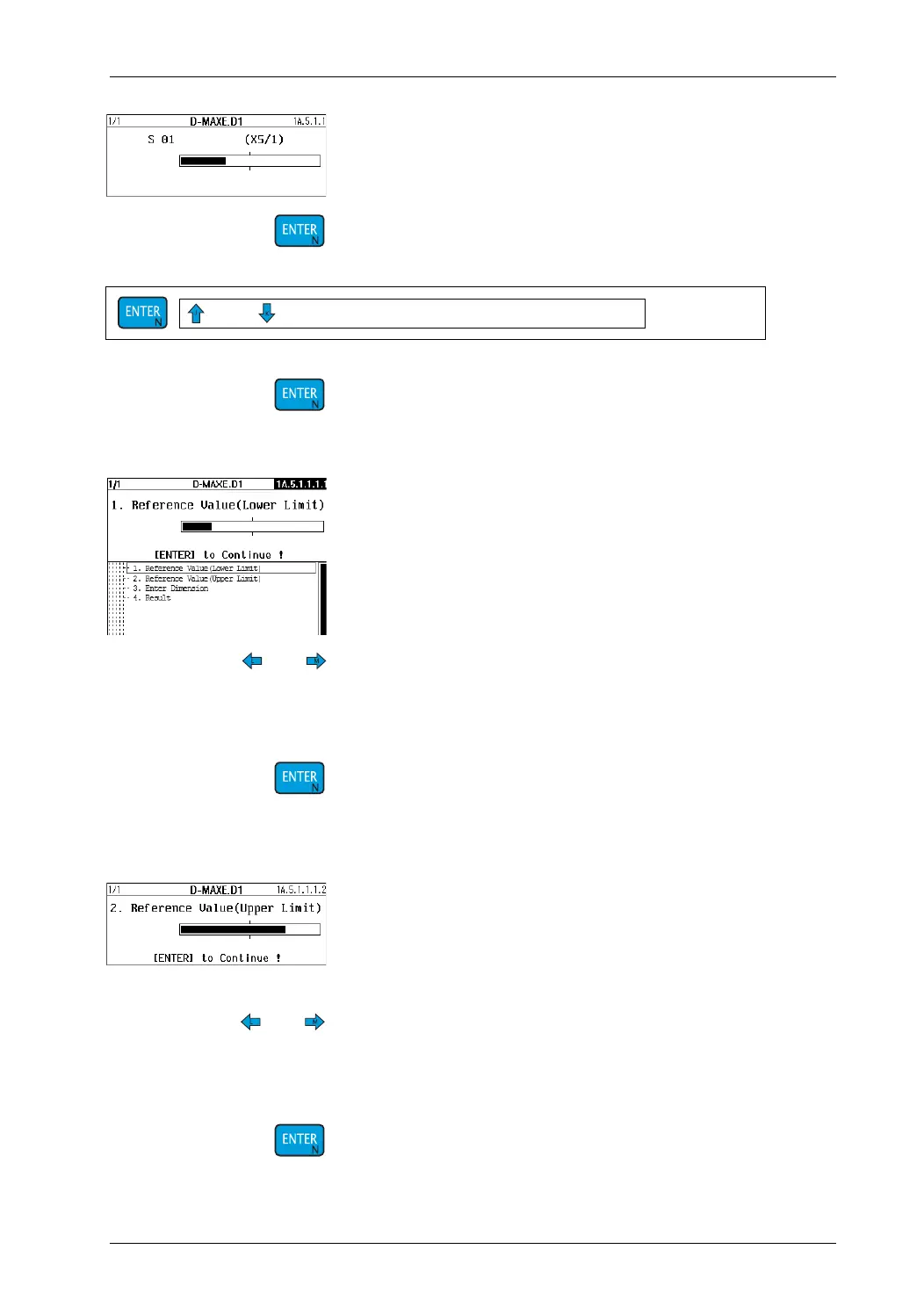

The sensor signal currently present is shown in the bar graph.
Enable the parameter for input
∙ Start the sequence for calibrating the sensor
Menu 1y.5.1.1.1.1
1. Reference Value (Lower Limit)
The reference value for the uncovered sensor must be
determined. To do this, remove the material web completely
from the sensor's field of view.
∙ Move the drive until the material web has been completely
removed from the sensor's field of view
or
Remove the material web from the sensor's field of view
manually.
∙ Determine the
reference value (open)
Menu 1y.5.1.1.1.2
2. Reference Value (Upper Limit)
The reference value for the covered sensor must be determined.
To do this, the sensor's field of view must be completely covered
by the material web.
∙ Move the drive until the sensor's field of view is completely
covered by the material web
or
Position the material web in the sensor's field of view
manually
∙ Determine the
reference value (covered)
