CONTROLLER MENUS: 1Y.5 HARDWARE IOS7 - 24
D-MAXE with OI-B/OI-N www.maxcessintl.comMI 2-296 1 D

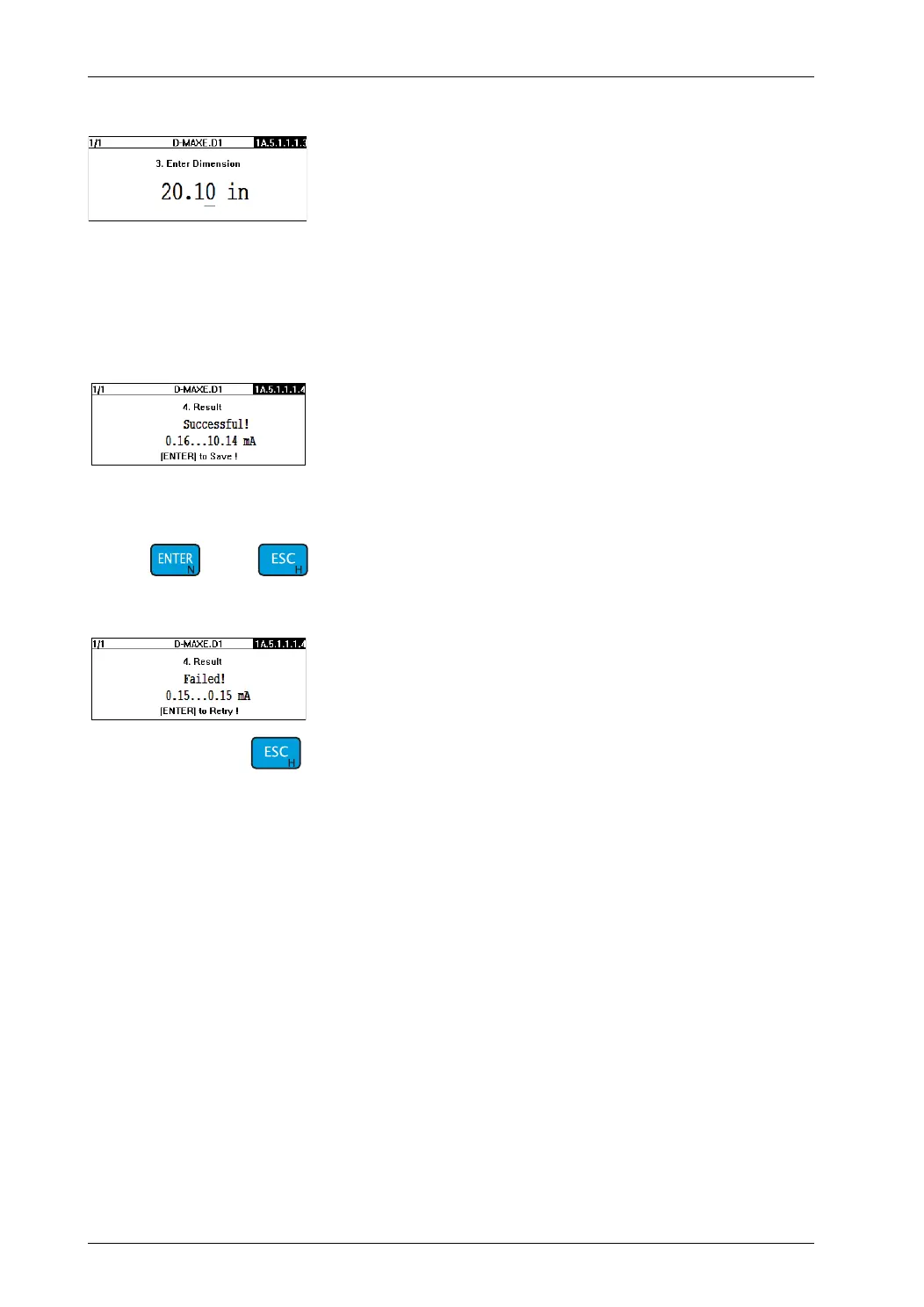

Menu 1y.5.1.1.1.3
3. Dimension (OPTIONAL)
You can use the
Dimension
menu to scale the field of view of the
connected sensor.
If this information is not required for the relevant customer
application, the entry should be set to the default value = 0.
(See
7-25.
)
Menu 1y.5.1.1.1.4
4. Result
If the determined contrast is great enough for guiding,
Successful appears in the display.
Signal increase = Contrast * 0.172mA
Save the entries or cancel
OR
If the contrast is not sufficient for guiding,
Failed appears in
the display.
∙ Cancel entries
Repeat the calibration of the sensor until the process can be
completed successfully.
To Next Page
