CONTROLLER MENUS: 1Y.5 HARDWARE IOS7 - 36
D-MAXE with OI-B/OI-N www.maxcessintl.comMI 2-296 1 D
Menu 1y.5.1.7.2
Dimension
Note:
The encoder must be calibrated before this parameter can be set
(see
Menu 1y.5.1.7.1 Calibration, page 7-32
).
Description You can use the
Dimension
menu to enter the calibrated travel
path of the encoder. This serves to correct the value derived
from calibration of the encoder (see also
Menu 1y.5.1.7.1.5,
page 7-34
, Enter the distance).
The drive must be moved to its thresholds and the distance
must be measured. Enter the measured distance in this menu.
If this information is not required for the relevant customer
application, the entry should be set to the default value = 0.
Menu

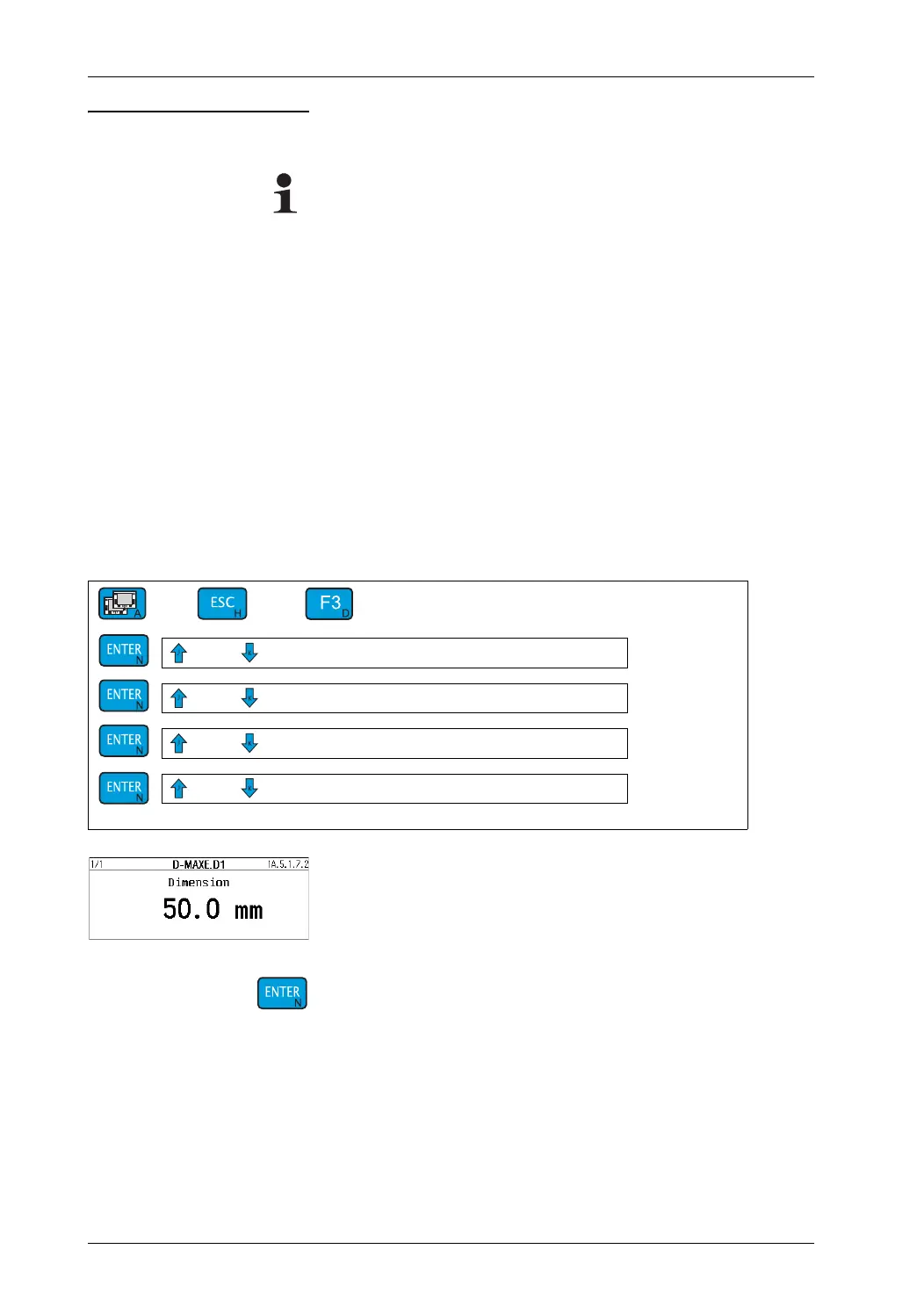

Key sequence for menu 1y.5.1.7.2:
The current setting for the
Dimension
parameter is shown here.
Enable the parameter for input
To Next Page
