McLaughlin VX30 Series - Slip Hook - Replace

VX30/VX50 Gen3/ECO50 Vacuum Systems Maintenance - As Required 60-55
Belt Alignment - Check

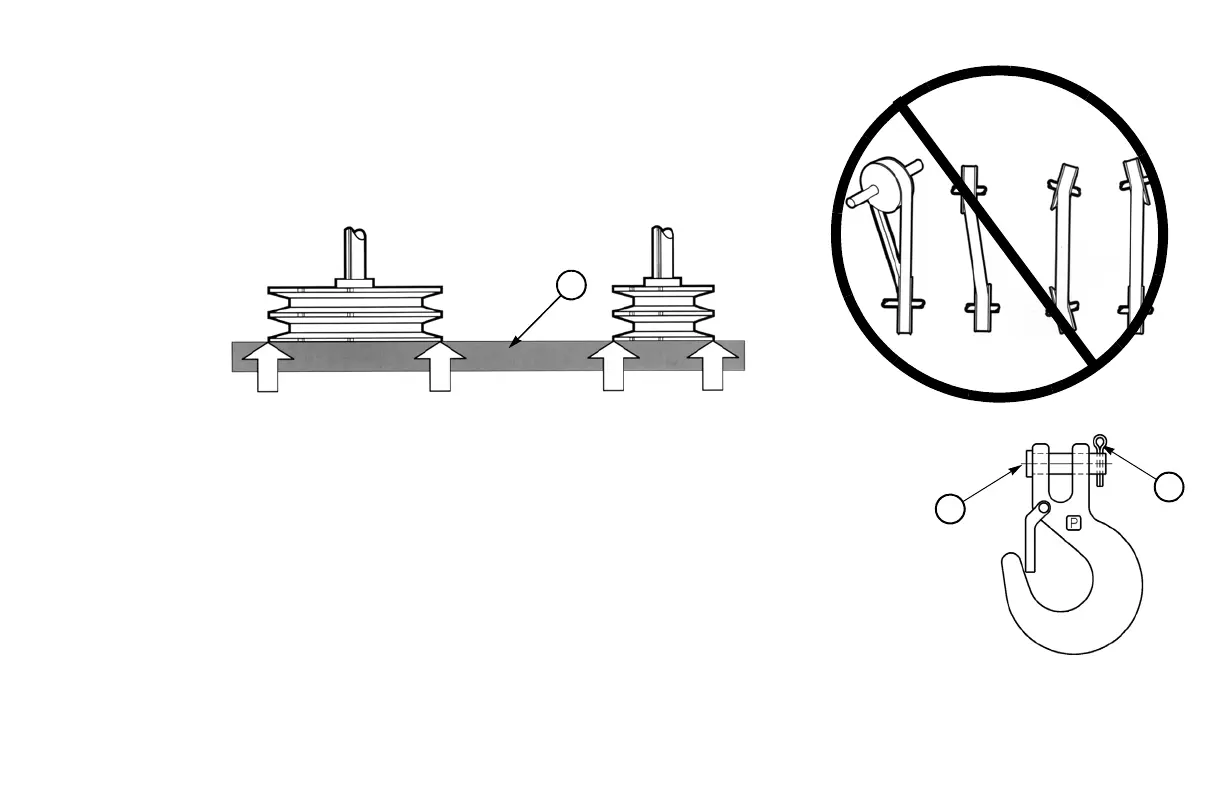

Use a straightedge (1) to check belt alignment when installing new belts,
performing maintenance, or replacing the sheaves. Proper belt alignment is
essential to maintain long belt life.
When checking sheave alignment, the straightedge
should touch the sheaves at
the four points indicated with arrows. Check both front and back alignment.
Slip Hook - Replace
Replace towing chain slip hook if the latch is damaged, missing, or does not snap closed to the
hook.
Step 1: Remove cot
ter pin (1) and slip hook pin (2) to remove slip hook from the chain link.
Step 2: Sli
de new slip hook onto chain link and install slip hook pin and cotter pin.
1
2
1
