Spoil Tank - Clean
Ensure spoil tank has been emptied before proceeding.
Step 1: Follow the “Starting Procedure,” p
age 22-1.
Step 2: With
the spoil tank empty, unlock and raise tank
door, then raise the tank.
Step 3: In

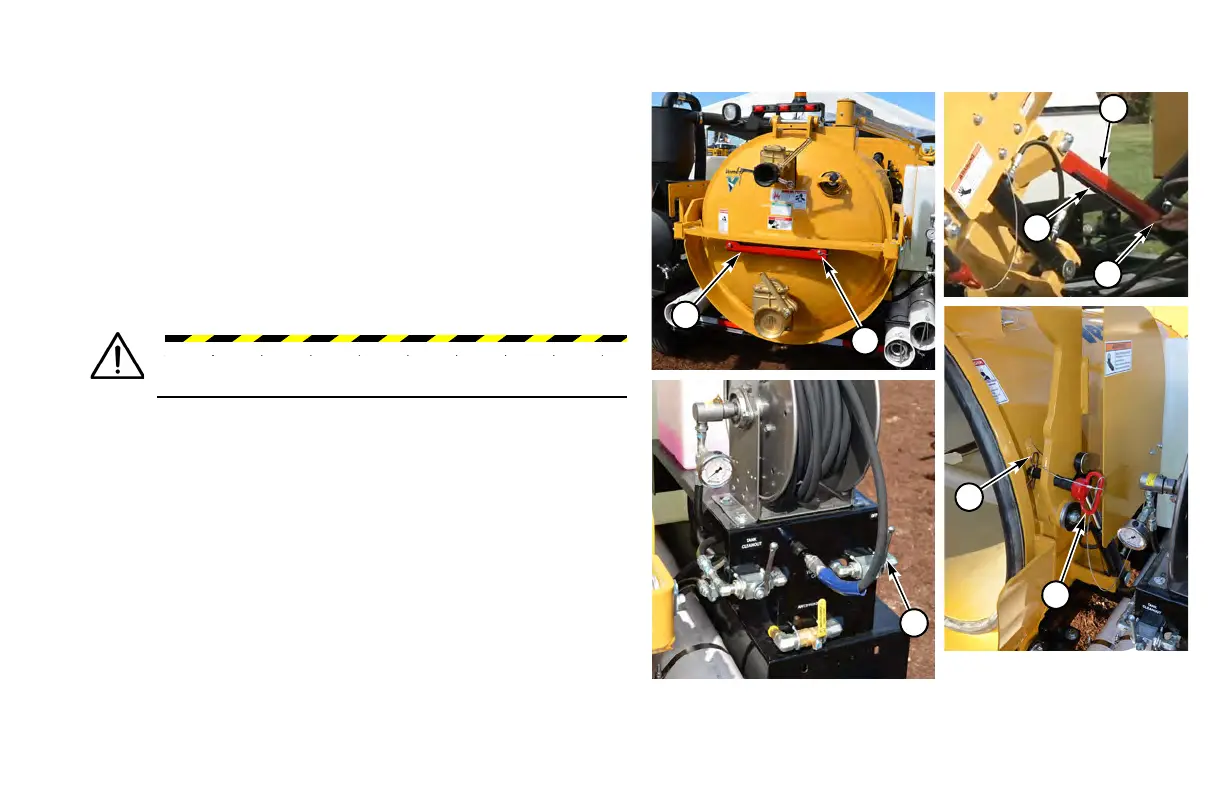

stall safety bar (1) over tank cylinder (2) rod.
Secure bar with safety snap pins (3).
Step 4: In
stall safety lock pins (4) and secure each with
hairpin (5) to support raised tank door.
Step 5: Att
ach spray wand to the water hose.
Step 6: Ru
n engine at high speed.
Step 7: Turn Water Pump
Switch ON.
Step 8: Open
Hose Reel ball valve (6).
WARNING: Always install safety bar and safety lock
pin before working under raised tank or raised door.
