McLaughlin VX30 Series - Remote Control - Boom (Option); Hydraulic Rotation Boom

20-18 Controls VX30/VX50 Gen3/ECO50 Vacuum Excavators

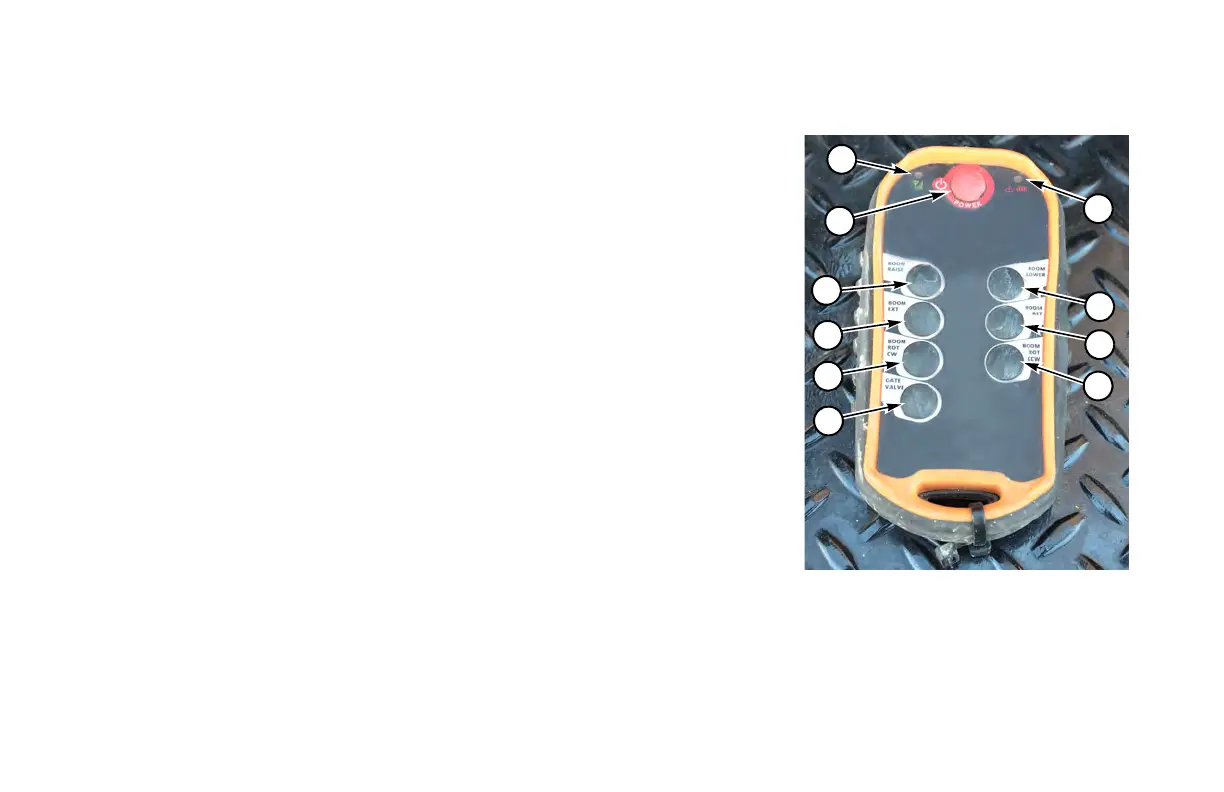

REMOTE CONTROL - BOOM (OPTION)
Hydraulic Rotation Boom
(1) Power ON/OFF
(2) Boom Raise
(3) Boom Lower
(4) Boom Extend
(5) Boom Retract
(6) Boom Rotation CW
(7) Boom Rotation CCW
(8) Gate Valve Open/Close
(9) Battery Power Level Indicator
Green light indicates sufficient battery power.
(10) Signal Indicator
Green flashing light indicates connecti
vity. Red light indicates no
connection.
2
1
4
8
5
6
7
3
9
10
