McLaughlin VX30 Series - Manual Override Boom Controls

20-20 Controls VX30/VX50 Gen3/ECO50 Vacuum Excavators

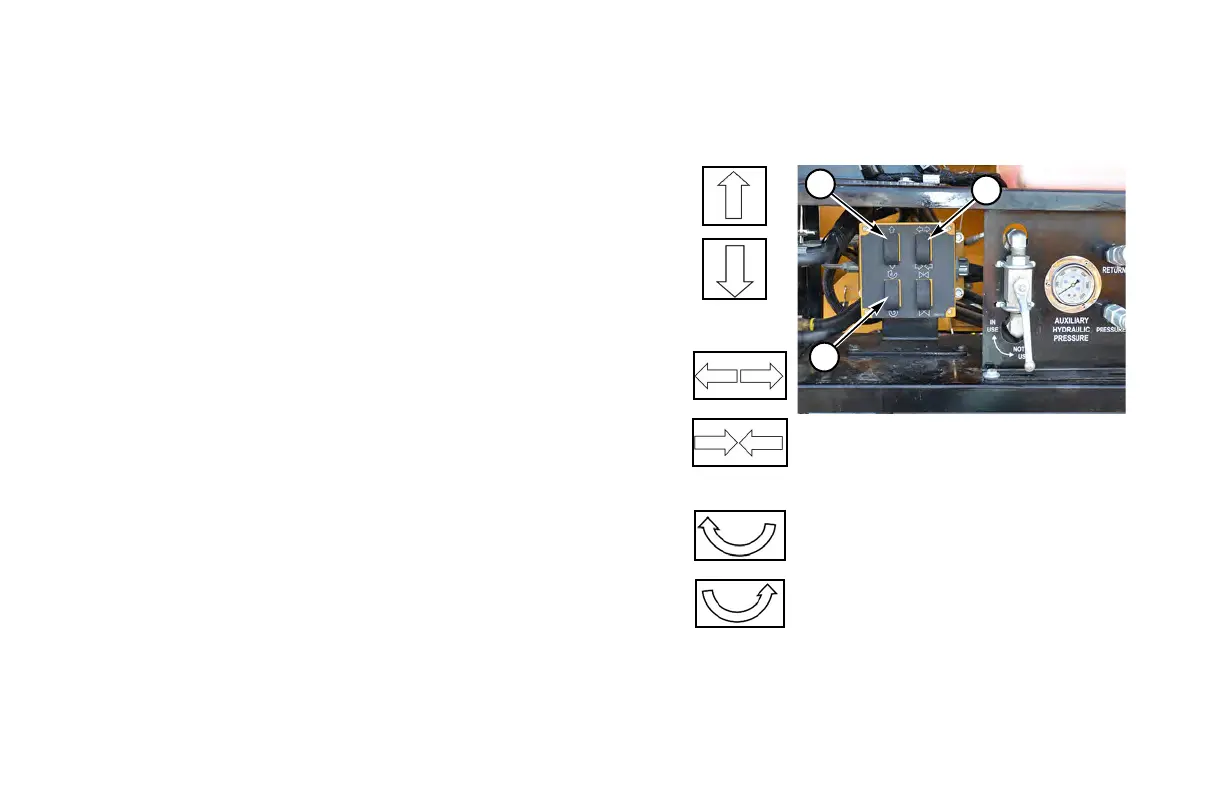

Manual Override Boom Controls
The Manual Override Boom controls provide a means to move the boom to storage position if remote control is
inoperable or lost.
(1) Boom Raise/Lower
Press top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . raise boom
Press bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . lower boom
(2) Boom Extend/Retract
Press top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . extend boom
Press bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . retract boom
(3) Boom Rotate
Press top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . rotate boom clockwise
Press bottom . . . . . . . . . . . . . . . . . . . . rotate boom counterclockwise
1
3
2
