VX30/VX50 Gen3/ECO50 Vacuum Excavators Controls 20-5
KUBOTA ENGINE CONTROLS

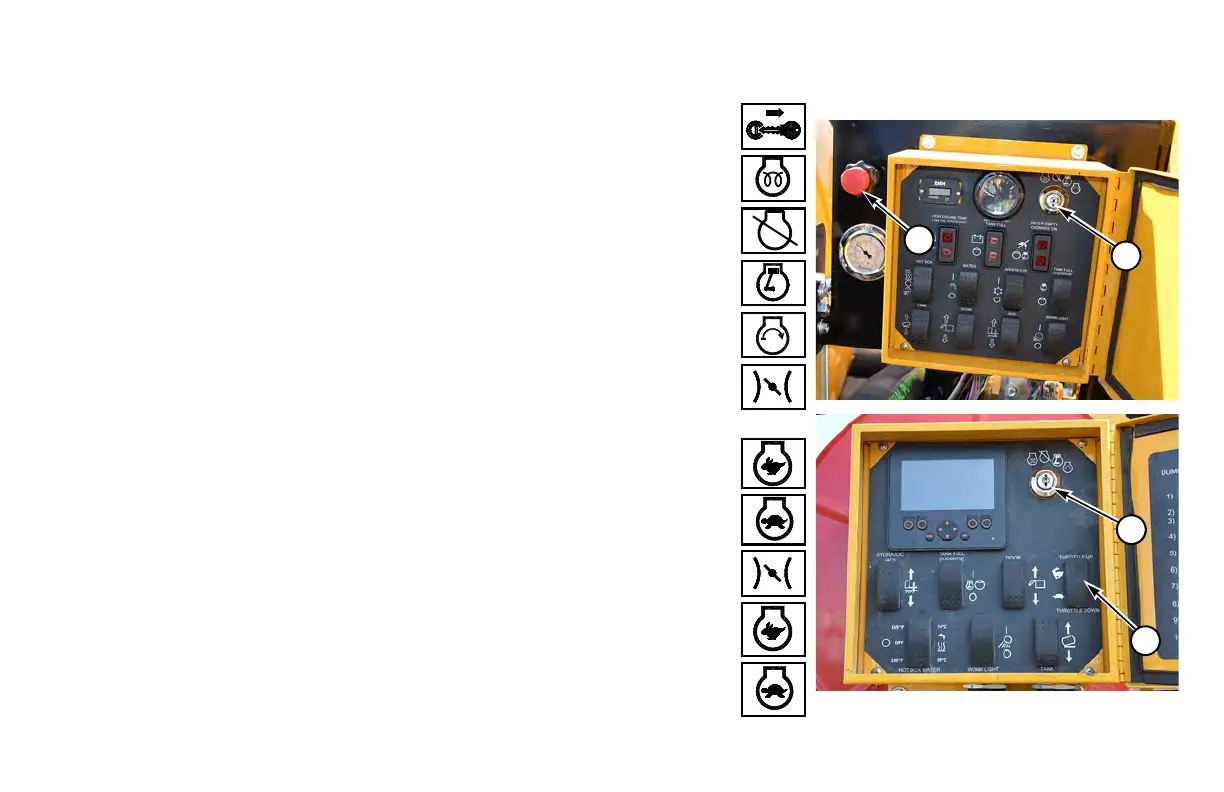

(1) Keyswitch (Engine Ignition) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Counterclockwise from vertical . . . . . . . . . . . . . . . . . engine preheat
1st position clockwise (vertical) . . . . . . . . . . . . . . . . . . . engine OFF
2nd position clockwise. . . . . . . . . . . . . . . . . . . . electrical system ON
3rd position clockwise . . . . . . . . . . . . . . . . . . . . . . . . . . . engine start
(2) Throttle Lever (VX30) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lock speed in place using lock ring. Press red button to immediately
ret
urn to low idle speed.
Clockwise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .increase RPM
Counterclockwise . . . . . . . . . . . . . . . . . . . . . . . . . . . . decrease RPM
(3) Throttle Switch (VX50/ECO50). . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Press top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .increase RPM
Press bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . decrease RPM
2
1
3
1
