Meggitt VM600 Hardware Manual

2 - 24 VM600 MPS hardware manual (standard version) MAMPS-HW/E
Edition 17 - February 2018
RPS6U rack power supply (ABE04x only)
OVERVIEW OF VM600 MPS HARDWARE
2.10.9.2 DC-input panel with a common input (special earth terminal)
This rear panel has one DC input with a screw-terminal connector that provides a common
input to DC-input versions of the RPS6U power supplies in a VM600 rack. It also provides a
special earth terminal (identified as M.A.L.T.).
Figure 2-17 shows:
a. The associated panel at the rear of the ABE04x rack
Rear panel ordering number: 200-582-922-NHh
(equivalent VM600SYS order option code: F220).
b. Details of the associated VM600 rack power supply wiring.
(The front panel of the DC-input versions of the RPS6U rack power supply is shown in
Figure 2-15.)
A VM600 rack power supply solution using this DC-input panel is intended for use with one
DC-mains supply, that is, a non-redundant external power-supply system.
vibro meter
DATA
MATRIX
2D

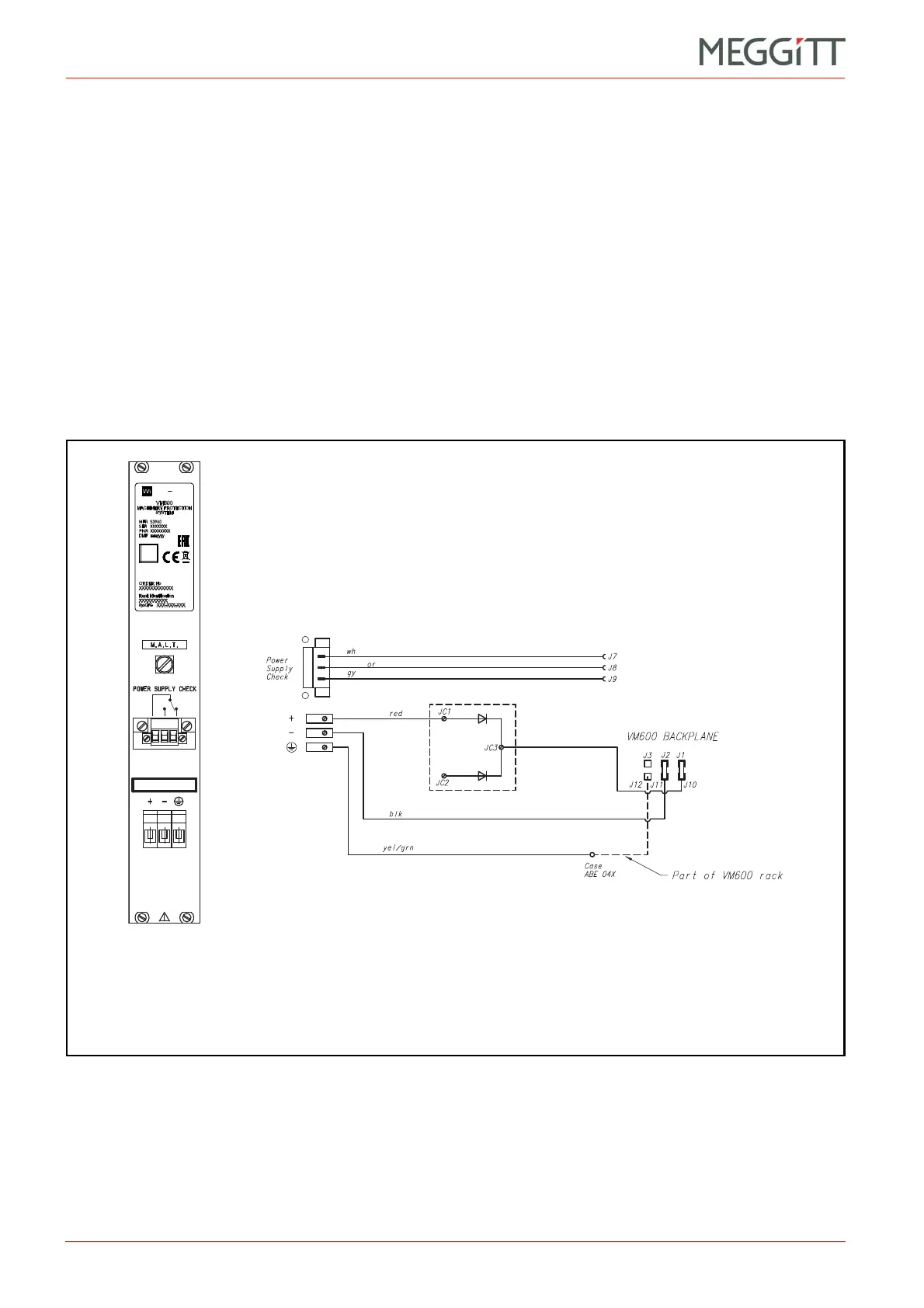

Figure 2-17: DC-input panel with a common input
(special earth terminal)
(a) Rear panel (b) Wiring details
DC input label
(Rear panel
connections)
(Internal to
VM600 rack)
