VM600 MPS hardware manual (standard version) MAMPS-HW/E 2 - 25
Edition 17 - February 2018
RPS6U rack power supply (ABE04x only)
OVERVIEW OF VM600 MPS HARDWARE
2.10.9.3 DC-input panel with individual inputs
This rear panel has two DC inputs with screw-terminal connectors that provide individual
inputs to DC-input versions of the RPS6U power supplies in a VM600 rack.
Figure 2-18 shows:
a. The associated panel at the rear of the ABE04x rack
Rear panel ordering number: 200-582-993-NHh
(equivalent VM600SYS order option code: F930).
b. Details of the associated VM600 rack power supply wiring.
(The front panel of the DC-input versions of the RPS6U rack power supply is shown in
Figure 2-15.)
A VM600 rack power supply solution using this DC-input panel is intended for use with two
DC-mains supplies, that is, a non-redundant external power-supply system.
vibro meter
DATA
MATRIX
2D

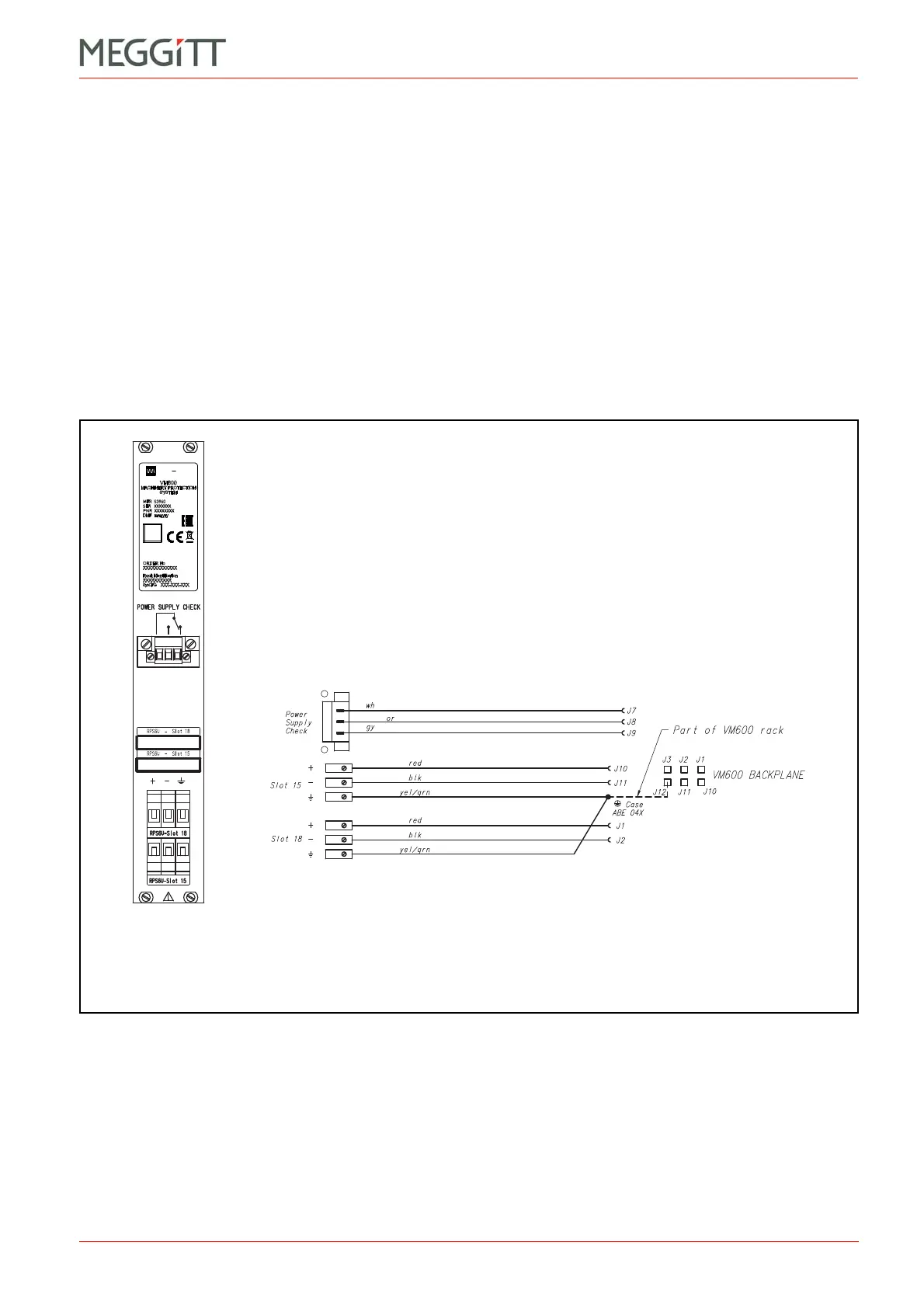

Figure 2-18: DC-input panel with individual inputs
(a) Rear panel (b) Wiring details
DC input label
DC input label
(Rear panel
connections)
(Internal to
VM600 rack)
