2.2. Determine handing

Stand at the bottom of the stairway looking upward. A right-hand unit will be

installed on the right side of stairs (shown below)

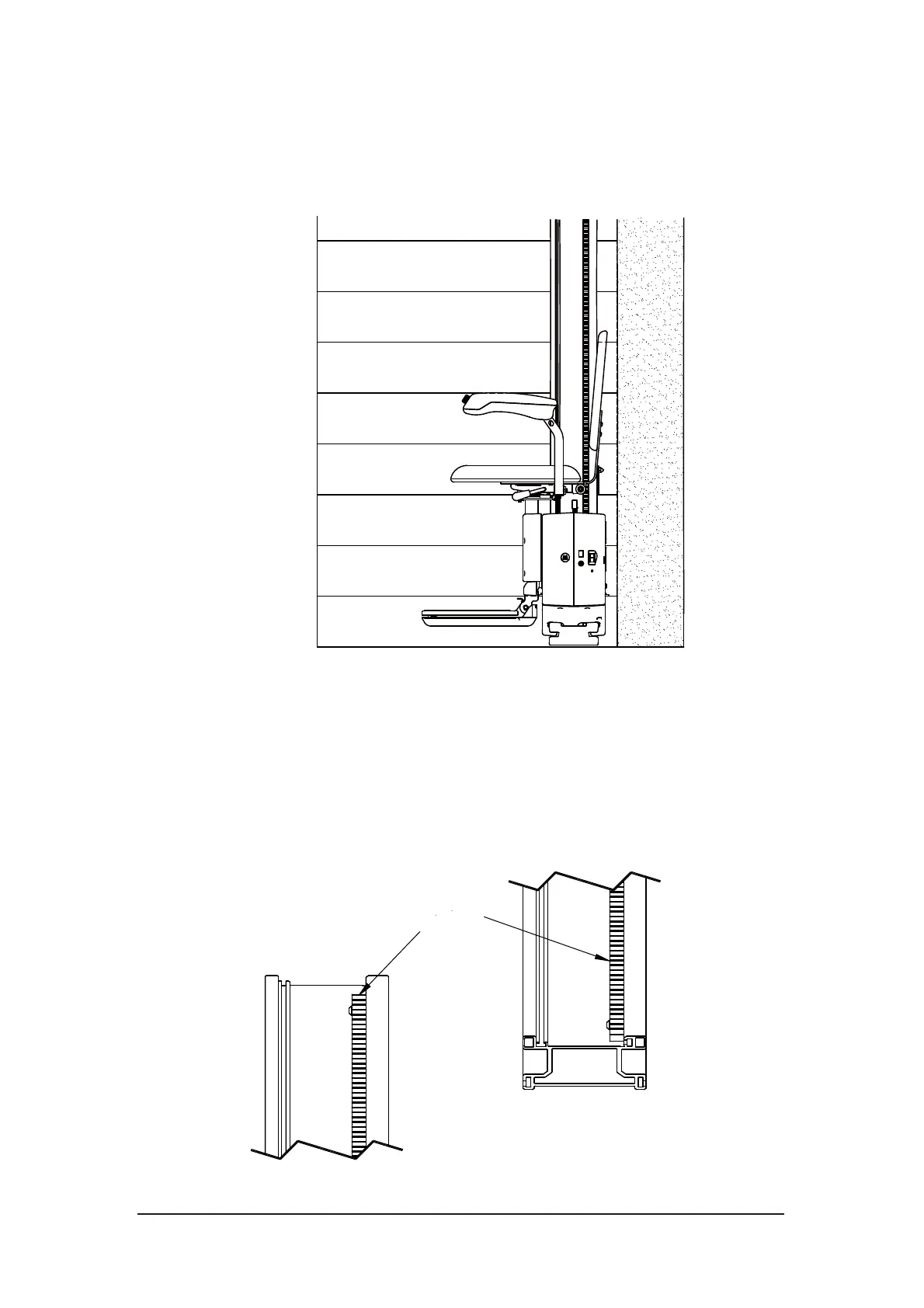

Figure 2-3 The rail is installed on the right side of stairs for the right-hand unit

2.3. Cut the rail to length as required

Always cut the rail from the top of the rail. The top side of rail is same for both

left-hand and right-hand units (shown below). The steel rack is always on the right

side of rail. Cut the aluminum rail separate from the steel rack.

Figure 2-4 The top and bottom side of the rail

Rack

Top

Bottom
