3-3

3.3. Footrest Testing

3.3.1. bstacle Detection at Unfolding

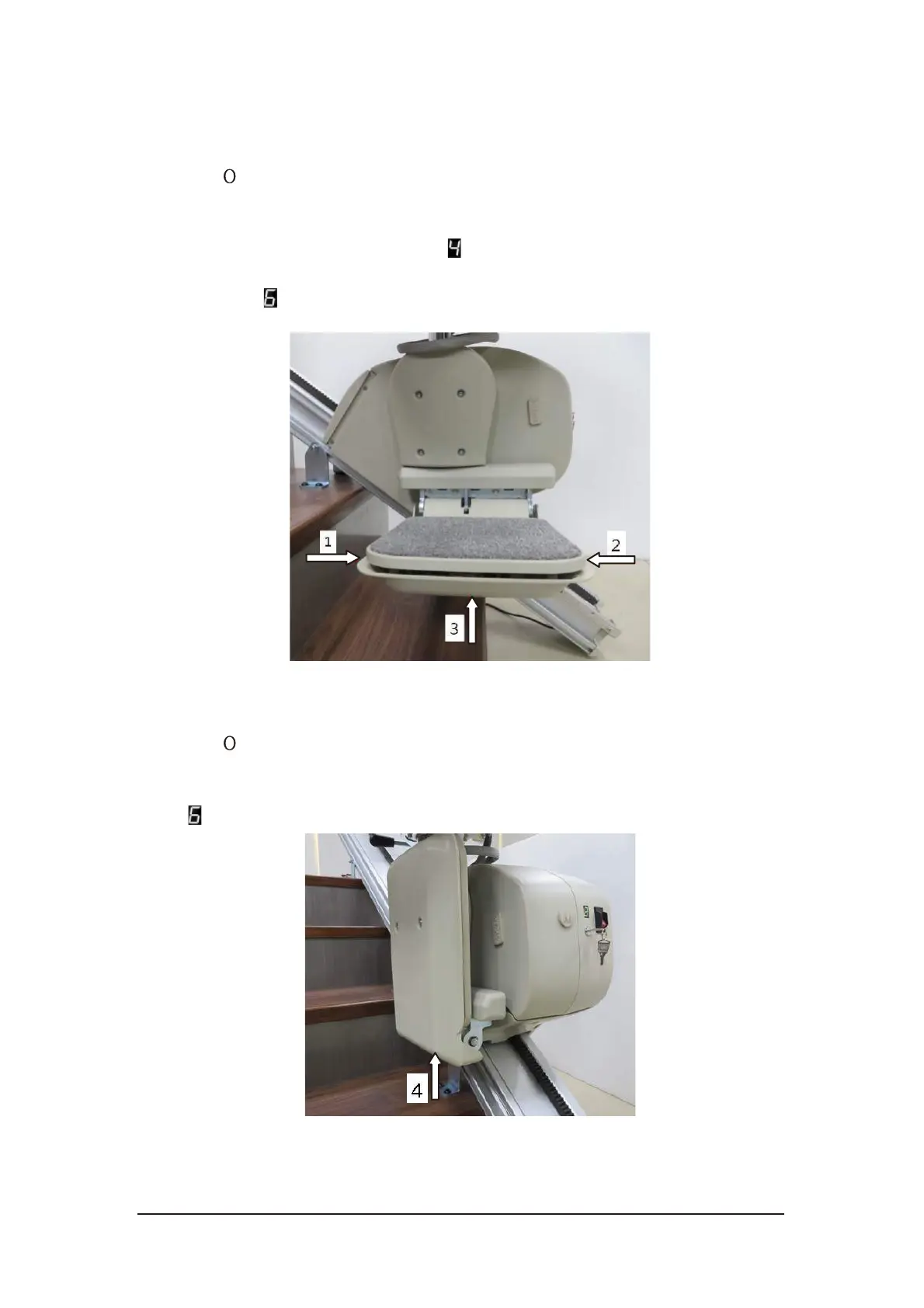

Move the stairlift in up direction and then push the footrest safety cover in three

directions as shown in Figure 3-4. The stairlift stops while pushing in direction

“1”. The status display indicates . Move the stairlift in down direction and

test again. It stops while pushing in direction “2” or “3”.The status display

indicates . Check the footrest connector if the direction is reversed.

Figure 3-4 Footrest test direction

3.3.2.

bstacle Detection at Folding

Move the stairlift down and then push the footrest safety cover in directions

“4”as shown in Figure 3-5. The stairlift stops and the status display indicates

Figure 3-5 Footrest test

direction at folding
