4-11

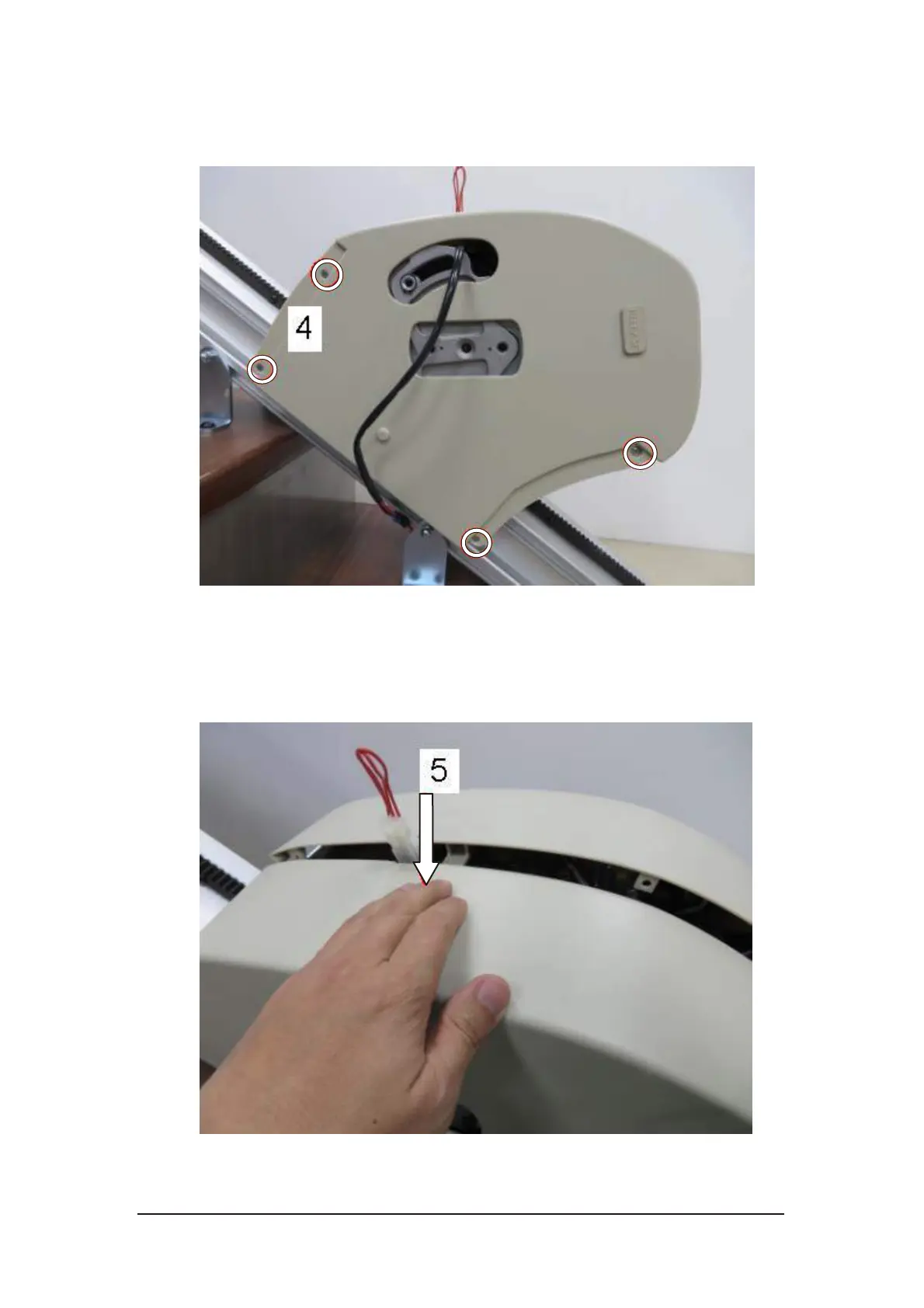

iv. Loosen eight screws on left and right side covers.

Figure 4-19 Loose screws on the side cover

v. Push the left side cover down to release the hook and remove the left side

cover.

Figure 4-20 Release the hook of side covers
