2.10.4. Adjust Seat Height (if required)

Remove the bolt from the seat post. Move the seat up or down as required and

then reinstall the bolt.

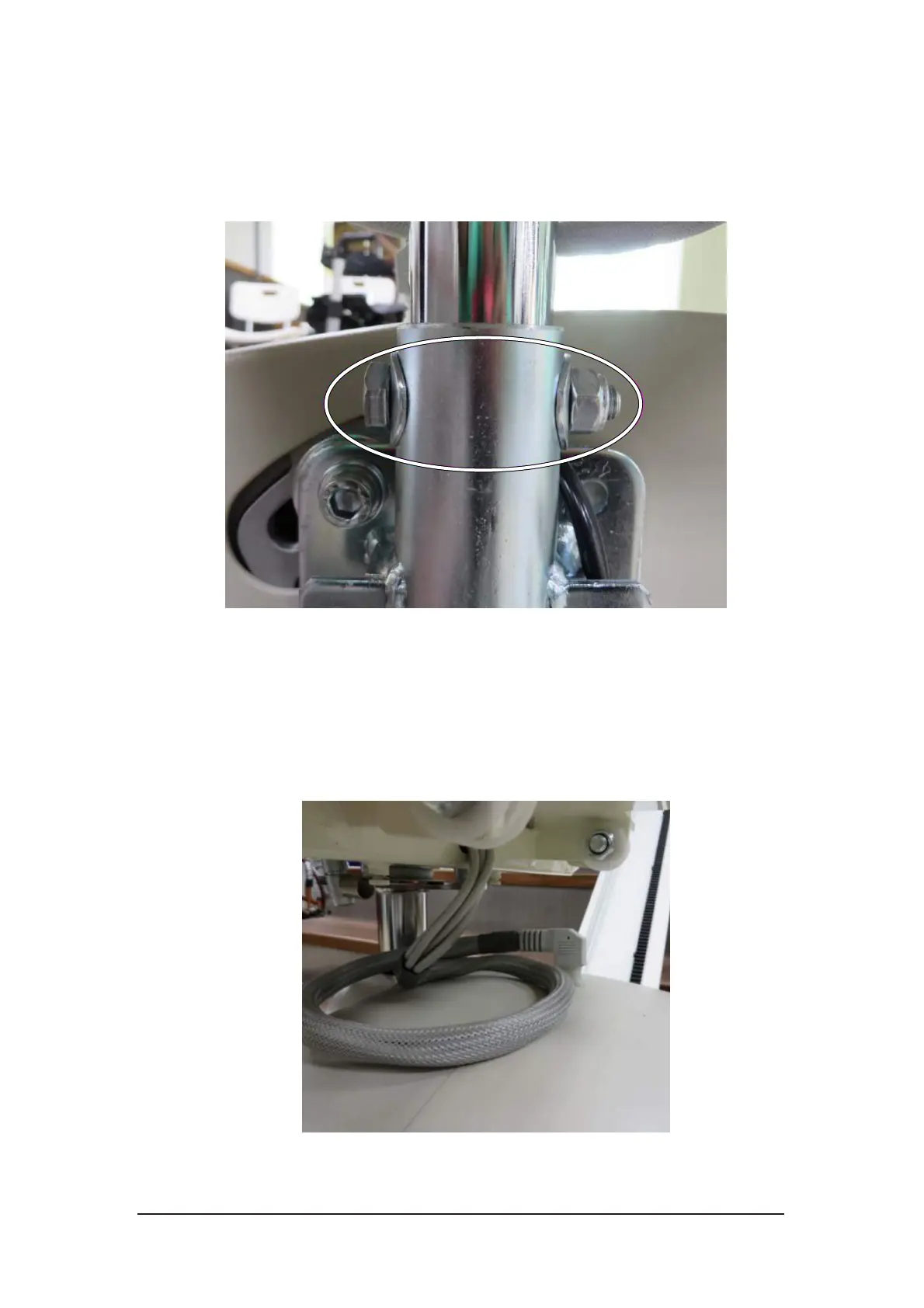

Figure 2-27 Seat height adjustment

2.10.5. Plug in Seat Control Cable

Turn off the power and key switch. Remove jumper plug from the carriage seat

connector. Plug in the seat control cable to the carriage housing. Rotate the seat to

ensure the cable won’t affect the function of seat.

Figure 2-28 Seat cable
