2-8

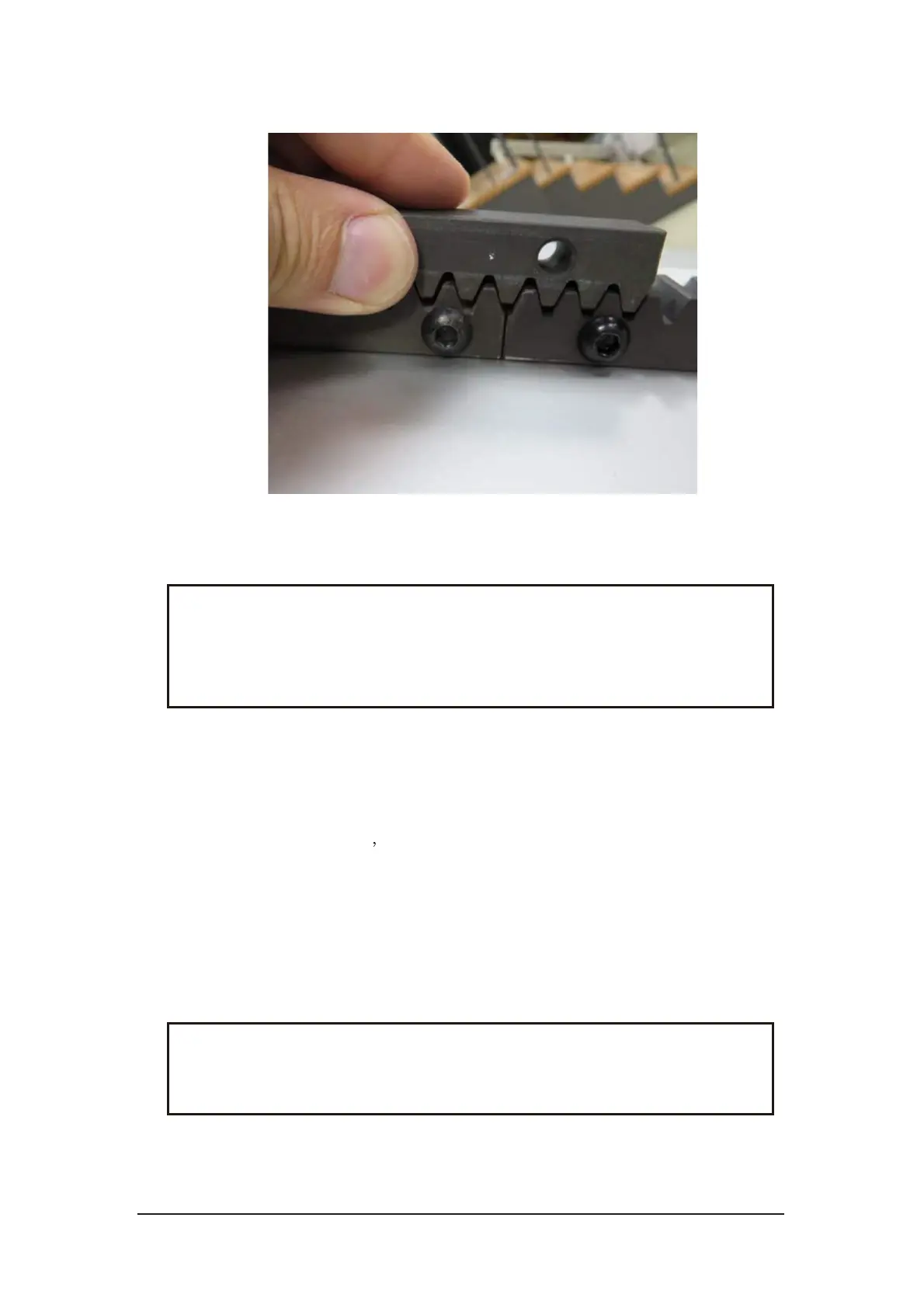

Figure 2-10 Mesh the rack sections

Note

Do not remove any of the screws on the racks once the rack is installed. The

nuts in the slot will fall down and cannot be tighten again. You will have to

remove the complete rack to reinstall the rack screw again if the screw has

been removed.

2.8. Install Carriage on Rail

2.8.1. Slide Carriage onto Rail

Remove top rack section limit switch cam, and charging bases on the top rail

section if they have been installed.Lift the carriage and line up the rollers with

the rail. Slide the carriage carefully onto the rail. Pay attention to the charging

pins and limit switches inside the carriage.

Note

The carriage is heavy. Take care when handling the carriage assembly.
