4-4

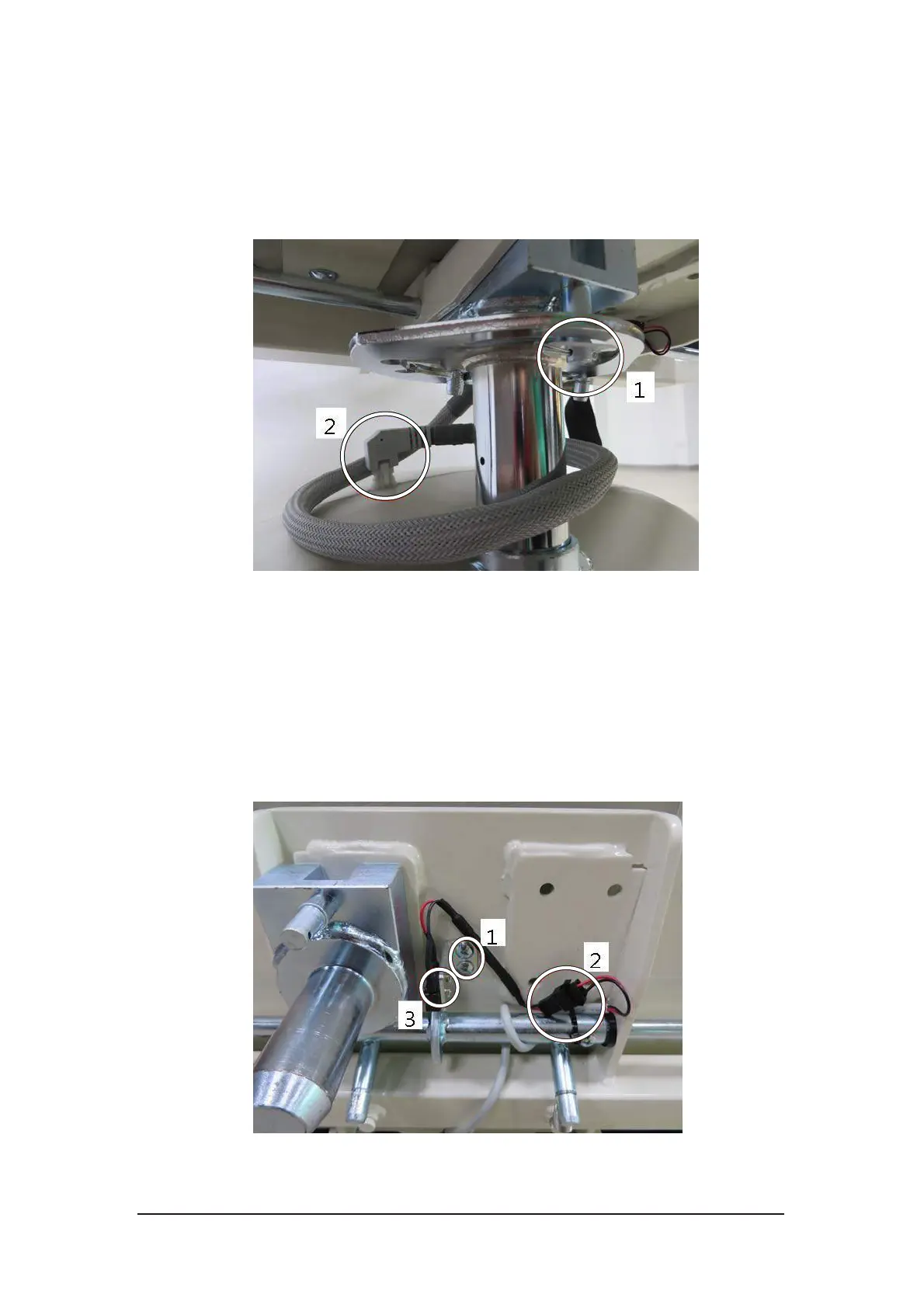

4.2. Seat Removal

Remove the pin and the nylon washer under the seat. Disconnect the seat cable

from the carriage. Pull the swivel handle and wiggle the seat to pull the seat out

from the seat post.

Figure 4-5 Seat removal

4.2.1. Swivel Switch Replacement

i. Loosen the two screws from the bottom of the seat.

ii. Disconnect the connector and cut the cable tie.

iii. Loosen the screws to replace the switch.

iv. Install the new switch and tighten the screws. Ensure the cable is not

interfering with the locking device and switch.

Figure 4-6 Swivel switch replacement
