4-6

4.3.3. Footrest Safety Cover Removal

i. Loosen two screws from the footrest.

ii. Push the cover to the left and then lift the left edge.

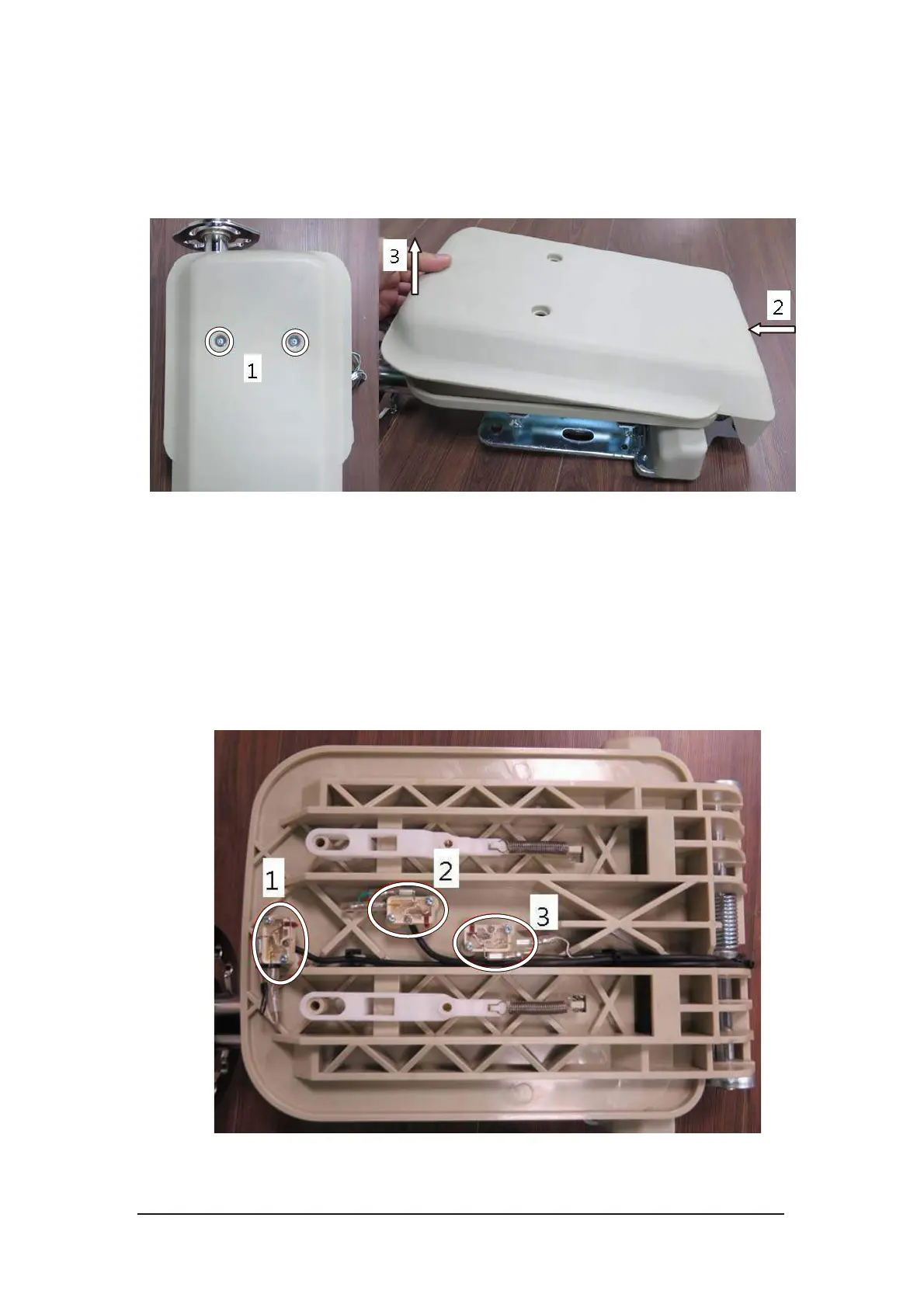

Figure 4-9 Footrest cover removal

4.3.4. Footrest Obstacle Detecting Switch Removal

Switch #1 is the bottom obstacle detecting switch. For right-handing unit,

Switch #2 is the up obstacle detecting switch and Switch #3 is the down

obstacle detecting switch. Switch #2 and #3 will swap the detecting

direction for left-handing unit. Loosen two screws on the switch and

disconnect the terminals to replace the broken switch.

Figure 4-10 Footrest obstacle detecting switches
