2.9. Install Footrest Assembly

2.9.1. Check Handing of Footrest

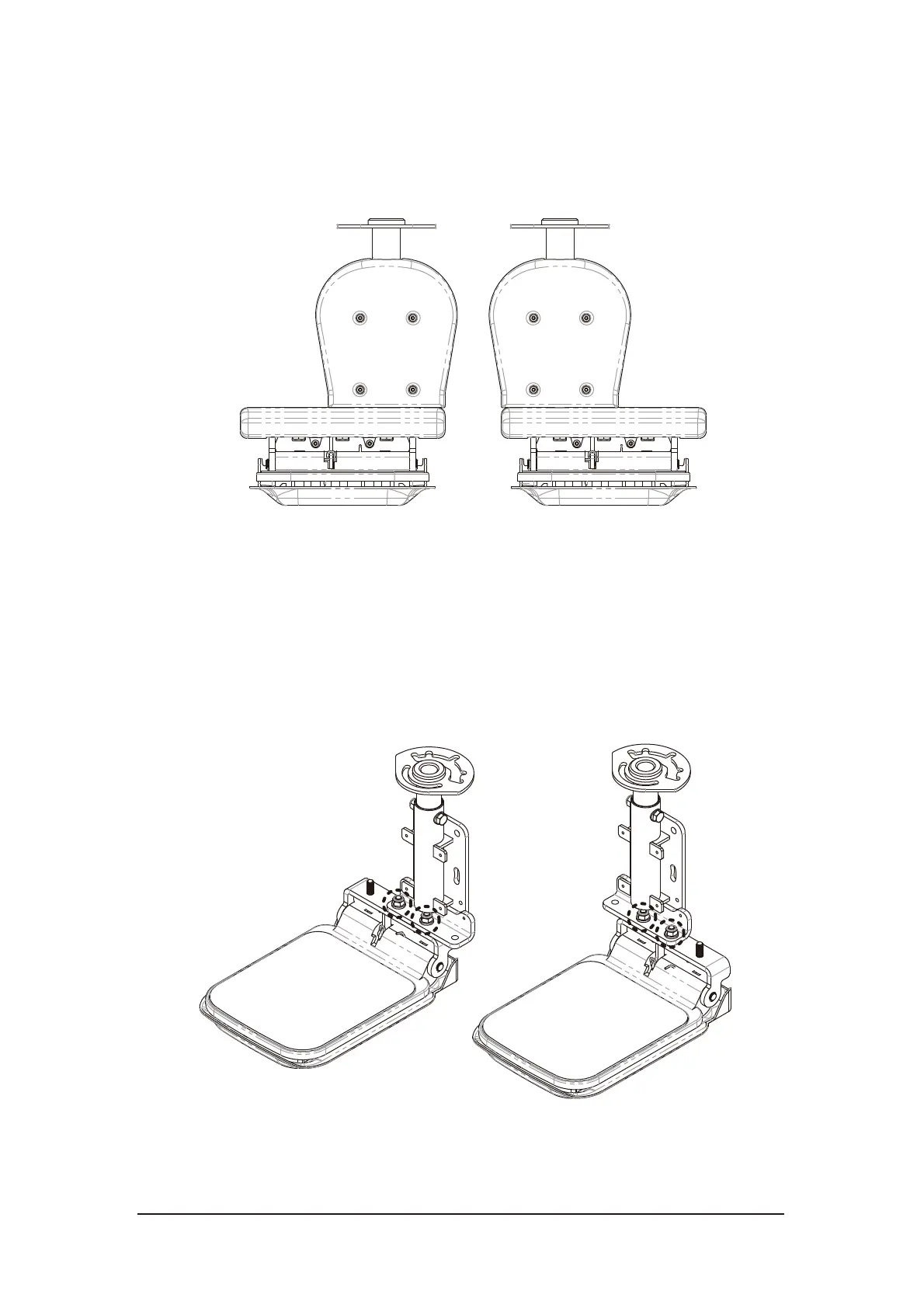

Figure 2-17 Footrest Handing

2.9.2. Switch Handing of Footrest (if required)

Remove covers on the footrest. Loosen two nuts and then move the bottom part

to the correct side. Tighten the nuts.

Figure 2-18 Switch footrest handing

Left Handing

Right Handing
