2-16

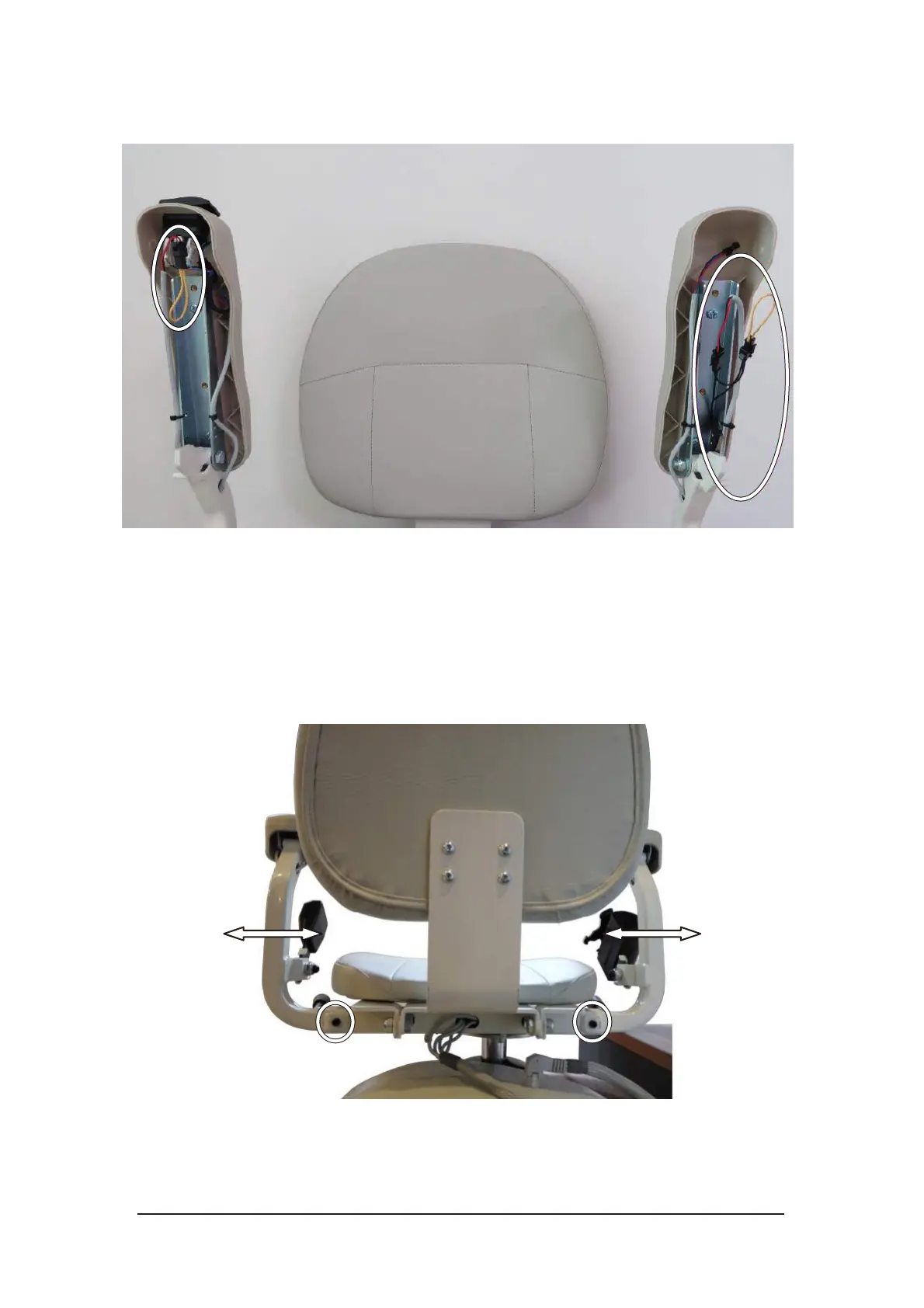

Figure 2-25Armrest safety switch and plugs

2.10.3. Adjust Armrest Width (if required)

Loosen the screws under the seat on the back side. Slide the arm in or out as

required and then tighten the screws.

Figure 2-26Armrest width adjustment
